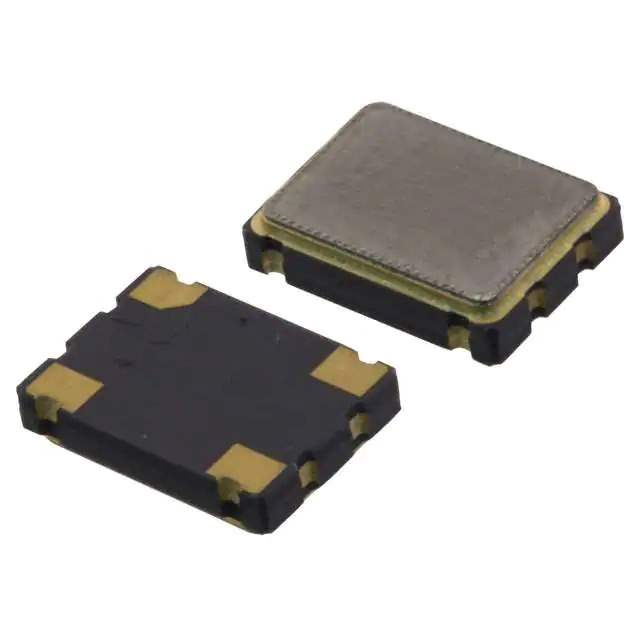

ECS-3953M-500-BN-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-3953M-500-BN-TR

Part No ECS-3953M-500-BN-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description XTAL OSC XO 50.0000MHZ HCMOS SMD
Datasheet
ECS-3953M-500-BN-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr ECS Inc.
Series ECS-3953M-BN
Package Tape & Reel
Product Status Active
Base Resonator Crystal
Type XO (Standard)
Frequency 50 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 25mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.067" (1.70mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 851666-ECS-3953M-500-BN-TR
Ultra Librarian 3D Model Ultra Librarian ECS-3953M-500-BN-TR CAD Model

Description

The 851666-ECS-3953M-500-BN-TR is an oscillator manufactured by ECS Inc.

  • Product Name: 851666-ECS-3953M-500-BN-TR
  • Category: Crystals, Oscillators, Resonators
  • Series: ECS-3953M-BN
  • Oscillator Type: Standard XO (Crystal Oscillator)
  • Packaging: Tape & reel
  • Standard Package Quantity: 1,000 pieces
  • Size: 0.276" L x 0.197" W (7.00mm x 5.00mm)
  • Height: 0.067" (1.70mm)
  • Frequency: 50 MHz
  • Output: HCMOS
  • Frequency Stability: ±50ppm
  • Supply Voltage: 3.3V
  • Mounting Type: Surface Mountable
  • Package: 4-SMD, No Lead
  • Operating Temperature: -40°C to 85°C
  • Product Status: Active
  • Manufacturer: ECS Inc.
