Same model may have multiple batches, images only for reference.

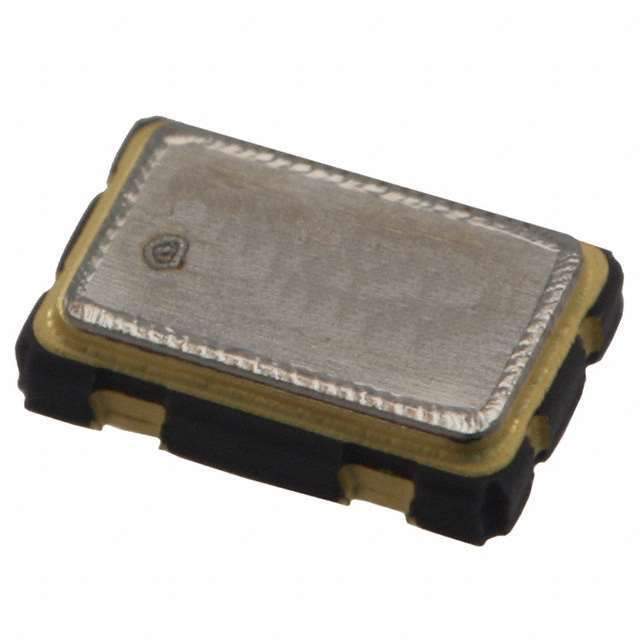

ECS-3525-600-B-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-3525-600-B-TR

Part No ECS-3525-600-B-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description OSC XO 60.000MHZ HCMOS SMD / Oscillator XO 60MHz ±50ppm 30pF HCMOS 60% 2.5V 4-Pin Mini-SMD T/R
Datasheet
ECS-3525-600-B-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer ECS Inc.
Series ECS-3525
Type XO (Standard)
Frequency 60MHz
Function Enable/Disable
Output HCMOS
Operating Supply Voltage 2.5V
Frequency Stability ±50ppm
Operating Temperature Range 0°C ~ 70°C
Maximum Supply Current 30mA
Mounting SMD
Package 4-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Maximum) 0.051" (1.30mm)
Win Source Part Number 770829-ECS-3525-600-B-TR
Popularity Medium
Supply and Demand Status Limited
Introduction Date January 04, 2005
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian ECS-3525-600-B-TR CAD Model

Description

The ECS Inc. ECS-3525-600-B-TR is a standard XO electronic component.

  • Series: ECS-3525
  • Frequency: 60MHz
  • Frequency Stability: ±50ppm
  • Height: 0.051” (1.30mm)
  • Dimension: 0.197” L x 0.126” W (5.00mm x 3.20mm)
  • Maximum Supply Current: 30mA
  • Estimated EOL Date: 2024
