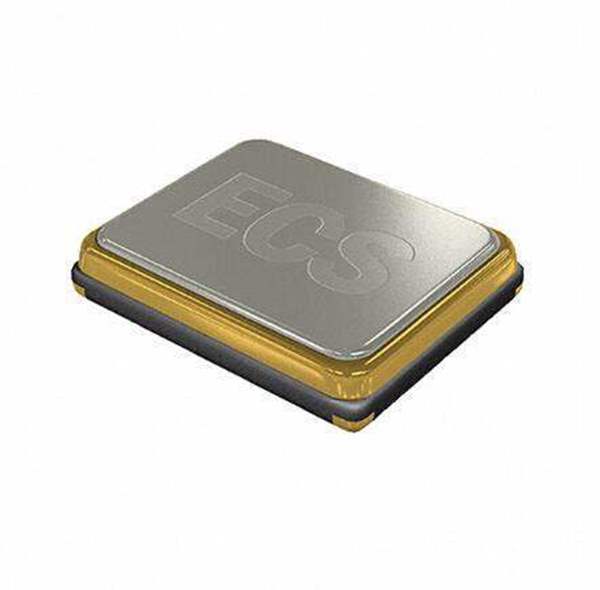

ECS-320-8-47-CKM-TR ECS Inc.
Same model may have multiple batches, images only for reference.

ECS-320-8-47-CKM-TR

Part No ECS-320-8-47-CKM-TR
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 32.0000MHZ 8PF SMD
Datasheet
ECS-320-8-47-CKM-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer ECS Inc.
Category Crystals, Oscillators, Resonators Crystals
Part Status Active
Type MHz Crystal
Frequency 32 MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Operating Temperature -20°C ~ 70°C
Mounting Type Surface Mount
Win Source Part Number WS1211025-ECS-320-8-47-CKM-TR
Ultra Librarian 3D Model Ultra Librarian ECS-320-8-47-CKM-TR CAD Model

Description

32 MHz ±10ppm Crystal 8pF 80 Ohms 4-SMD, No Lead
