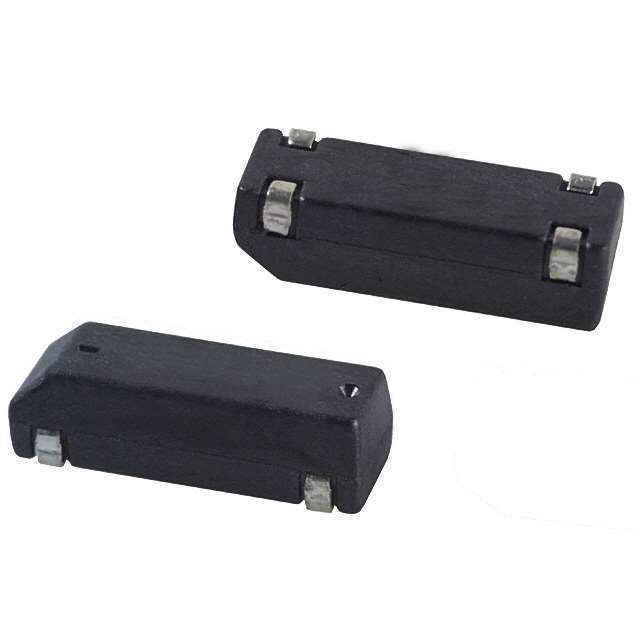

ECS-143-20-7SX-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-143-20-7SX-TR

Part No ECS-143-20-7SX-TR
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 14.31818MHZ 20PF SMD
Datasheet
ECS-143-20-7SX-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer ECS Inc.
Packaging Reel - TR
Status Active
Type MHz Crystal
Frequency 14.31818MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR 50 Ohm
Operating Mode Fundamental
Temperature Range - Operating -10°C to 70°C
Mounting SMD (SMT)
Dimension 0.492" L x 0.181" W (12.50mm x 4.60mm)
Height - Seated (Max) 0.146" (3.70mm)
Win Source Part Number 203521-ECS-143-20-7SX-TR
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ECS-143-20-7SX-TR CAD Model

Description

Overview

The ECS-143-20-7SX-TR crystal oscillator is engineered for seamless integration into electronic systems requiring stable frequency control. It offers excellent noise suppression and reliability.

Applications

  • Digital signal processing
  • Embedded systems
  • Data communication modules
  • Optical networking equipment

Features and Benefits

  • High Precision: Provides accurate and stable frequency outputs.
  • Robust Design: Built to perform in challenging environments.
  • Energy Efficient: Reduced power consumption for longer battery life.
  • Flexible Mounting Options: Facilitates ease of installation.

Additional Details

The ECS-143-20-7SX-TR is designed to minimize jitter, making it ideal for applications where signal integrity is critical. It conforms to industry standards, ensuring compatibility with existing systems.
