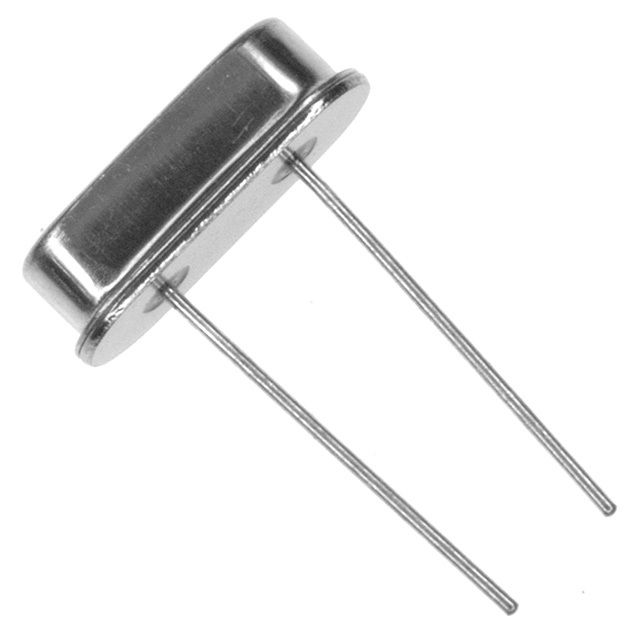

Same model may have multiple batches, images only for reference.
ECS-120-20-4XDN ECS Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ECS-120-20-4XDN

Part No ECS-120-20-4XDN
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 12.0000MHZ 20PF TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type MHz Crystal
Frequency 12 MHz
Frequency Stability ±100ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Case / Package HC-49/US
Size / Dimension 0.447" L x 0.183" W (11.35mm x 4.65mm)
Height - Seated (Max) 0.138\
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1529027-ECS-120-20-4XDN
Ultra Librarian 3D Model Ultra Librarian ECS-120-20-4XDN CAD Model
