Same model may have multiple batches, images only for reference.

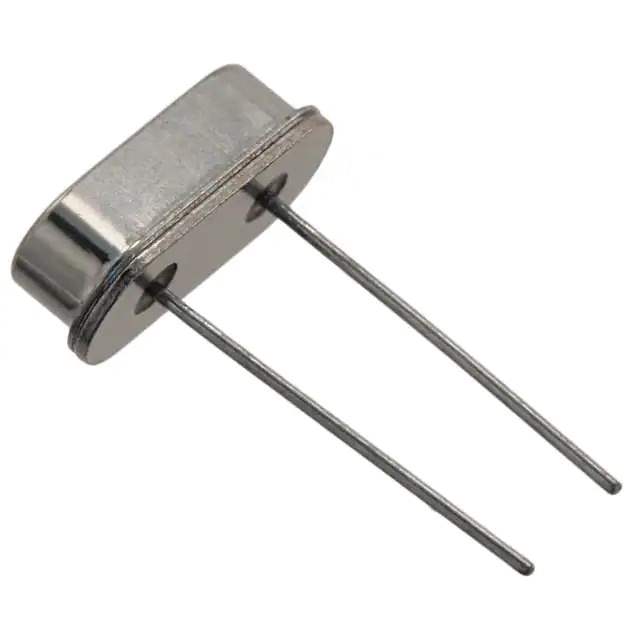

ECS-080-20-4X-DU Real Image
Same model may have multiple batches, images only for reference.

ECS-080-20-4X-DU

Part No ECS-080-20-4X-DU
Manufacturer ECS Inc.
Catalog Oscillators
Description CRYSTAL 8.0000MHZ 20PF TH
Datasheet
ECS-080-20-4X-DU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr ECS Inc.
Series HC-49USX
Package Bulk
Product Status Active
Type MHz Crystal
Frequency 8 MHz
Frequency Stability ±100ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case HC-49/US
Size / Dimension 0.447" L x 0.183" W (11.35mm x 4.65mm)
Height - Seated (Max) 0.138" (3.50mm)
Standard Package 200 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 917790-ECS-080-20-4X-DU
Ultra Librarian 3D Model Ultra Librarian ECS-080-20-4X-DU CAD Model

Description

The 917790-ECS-080-20-4X-DU is a crystal oscillator from ECS Inc.'s HC-49USX series. It is a MHz crystal with a frequency of 8 MHz.

  • Package: Bulk
  • Quantity: 200 pieces
  • Size/Dimension: 0.447" L x 0.183" W (11.35mm x 4.65mm)
  • Height: 0.138" (3.50mm) when seated
  • ESR (Equivalent Series Resistance): 80 Ohms
  • Frequency Stability: ±100ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 20pF
  • Mode: Fundamental
  • Mounting: Through hole
  • HTSUS code: 8541.60.0050
