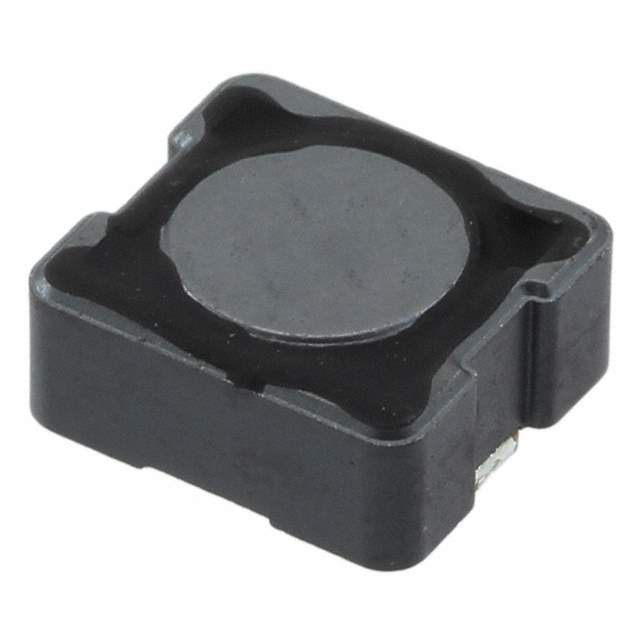

The CDRH104R-2R5 is a power inductor manufactured by ECM Electronics Limited. This inductor is well-suited for a wide array of power electronics applications. It is commonly used in DC-DC converters, power supplies, and various filtering circuits.

Applications


• DC-DC converters

• Power supplies (Buck, Boost, Buck-Boost)

• Voltage regulators

• EMI filtering

• LED lighting drivers

Features


• Shielded construction for low EMI

• High current carrying capacity

• Low DC resistance (DCR)

• Compact size

• RoHS compliant

Benefits


• Reduces electromagnetic interference, crucial for sensitive applications.

• Handles high current levels without saturation.

• Minimizes power losses, increasing efficiency.

• Allows for compact designs.

• Meets environmental regulations.

Detailed Specifications

The CDRH104R-2R5 has an inductance value of 2.5µH (microhenries) with a tolerance of ±20%. It has a saturation current (Isat) typically around 9A and a rated current (Irms) around 7A. The DC resistance (DCR) is typically around 0.008 ohms, minimizing power loss. The operating temperature range is -40°C to +125°C. This inductor is characterized by its shielded construction, which significantly reduces electromagnetic interference. The part is RoHS compliant.
