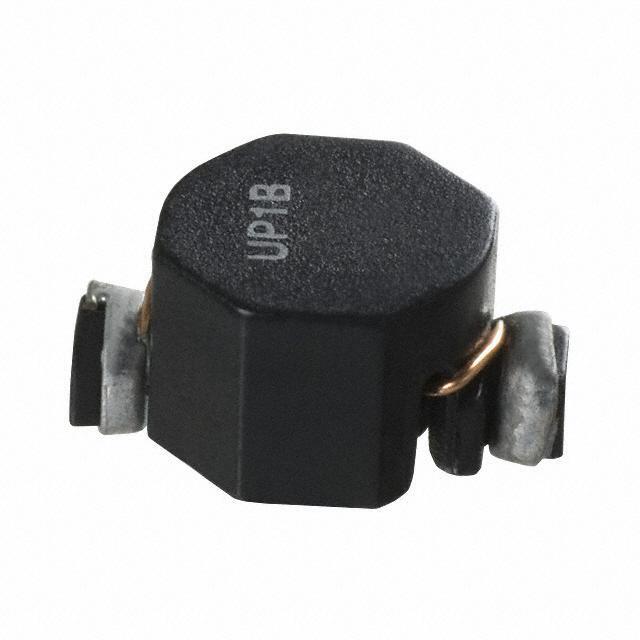

UP1B-220-R Eaton Bussmann
Same model may have multiple batches, images only for reference.

UP1B-220-R

Part No UP1B-220-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 22UH 1A 254.1 MOHM SMD
Datasheet
UP1B-220-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 1A
Current - Saturation 1.2A
DC Resistance (DCR) 254.1 mOhm Max
Temperature Range - Operating -40°C to 85°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.197" (5.00mm)
Win Source Part Number 112079-UP1B-220-R
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name UP1B
Introduction Date August 09, 2006
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian UP1B-220-R CAD Model

Description

The Eaton Bussmann UP1B series inductors are ideal for use in various applications such as power supplies, filters, and DC-DC converters.

  • Current Rating: 1A
  • Inductance: 22μH
  • Height: 0.197" (5.00mm)
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • Material: ferrite
  • Current Saturation: 1.2A
  • Frequency Test: 100kHz
  • DC Resistance (DCR): 254.1 mOhm Max
  • Operating Temperature Range: -40°C to 85°C
  • Package: reel - TR
  • Compliance: halogen-free
  • Popularity: highly popular
  • Supply and Demand: balance
