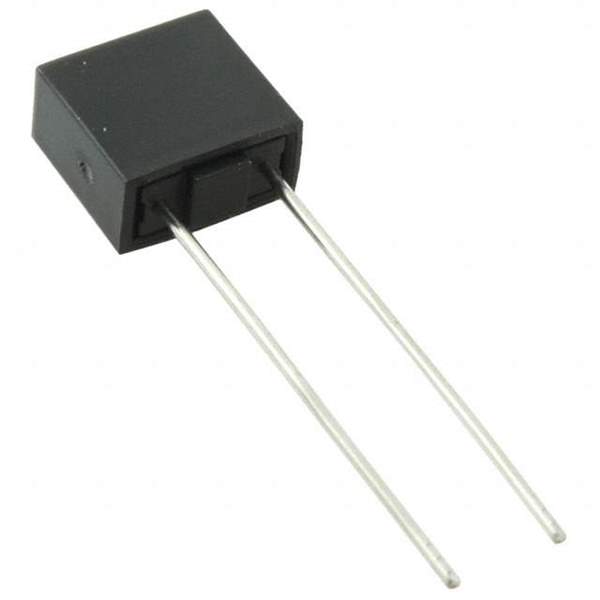

SS-5H-2A-APH Real Image
Same model may have multiple batches, images only for reference.

SS-5H-2A-APH

Part No SS-5H-2A-APH
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE BOARD MNT 2A 300VAC RADIAL / 2 A 300 V AC DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Radial, Box
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Eaton - Electronics Division
Series SS-5H
Package Cut Tape (CT) Tape & Box (TB)
Mounting Type Through Hole
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 2 A
Voltage Rating - AC 300 V
Response Time Slow Blow
Package / Case Radial, Box
Breaking Capacity @ Rated Voltage 100A
Melting I2t 29.8
Approval Agency CQC, cURus, KC, PSE, TUV, VDE
Temperature Range - Operating -40°C ~ 125°C
Size / Dimension 0.335" L x 0.169" W x 0.329" H (8.50mm x 4.30mm x 8.35mm)
DC Cold Resistance 31.15 Ohms
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1337559-SS-5H-2A-APH
Ultra Librarian 3D Model Ultra Librarian SS-5H-2A-APH CAD Model

Description

The SS-5H series fuses are designed for use in circuit protection applications.

  • Mounting Type: Board Mount
  • Voltage Rating: 300 V AC
  • Response Time: Slow Blow
  • Breaking Capacity: 100A @ Rated Voltage
  • Melting I2t: 29.8
  • DC Cold Resistance: 31.15 Ohms
  • Package/Case: Radial, Box Type
  • Temperature Range: -40°C to 125°C
  • Manufacturer: Eaton - Electronics Division
  • Standard Package: 1000
  • Approvals: CQC, cURus, KC, PSE, TUV, and VDE
