Same model may have multiple batches, images only for reference.

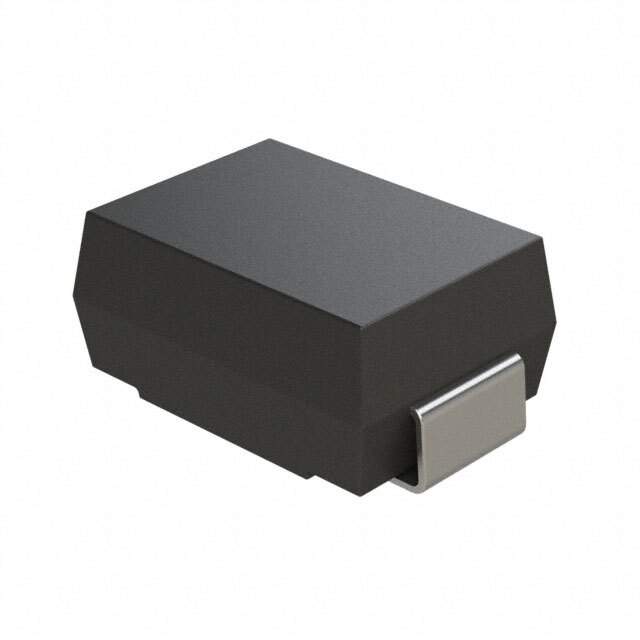

SMCP3500SC Real Image
Same model may have multiple batches, images only for reference.

SMCP3500SC

Part No SMCP3500SC
Manufacturer Eaton Bussmann
Catalog TVS - Thyristors
Description THYRISTOR 320V 400A DO214AA / 320V Off-State 400 A Ipp TVS Thyristor DO-214AA, SMB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Thyristors
Mfr Eaton - Electronics Division
Series SMCP
Package Tape & Reel (TR)
Voltage - Breakover 400V
Voltage - Off State 320V
Voltage - On State 4 V
Current - Peak Pulse (8/20µs) 400 A
Current - Peak Pulse (10/1000µs) 100 A
Current - Hold (Ih) 120 mA
Number of Elements 1
Capacitance 35pF
Mounting SMD (SMT)
Package / Case DO-214AA, SMB
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0080
Other Names 283-SMCP3500SCTR
Standard Package 3,000
Win Source Part Number 1052962-SMCP3500SC
Ultra Librarian 3D Model Ultra Librarian SMCP3500SC CAD Model

Description

The SMCP3500SC is a circuit protection TVS thyristor manufactured by Eaton - Electronics Division. The SMCP3500SC is a surface mount device with a voltage off state of 320V and a voltage breakover of 400V.
