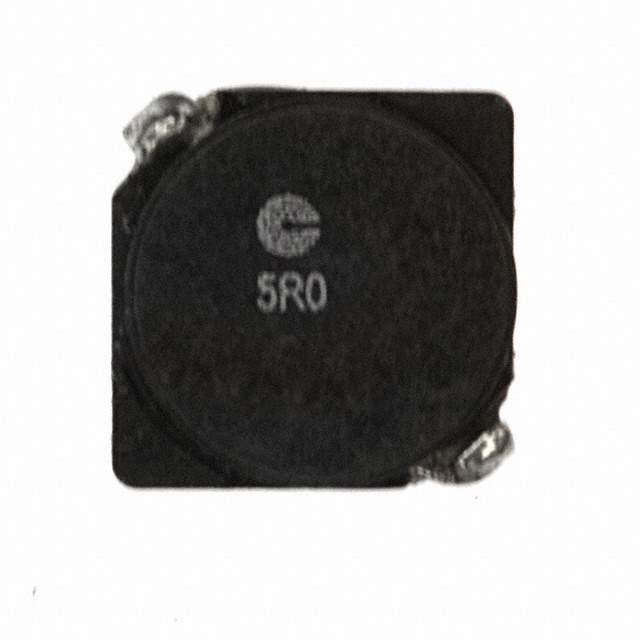

SD7030-5R0-R Real Image
Same model may have multiple batches, images only for reference.

SD7030-5R0-R

Part No SD7030-5R0-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 4.9UH 3.2A 31 MOHM SMD
Datasheet
SD7030-5R0-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 4.9μH
Tolerance ±30%
Current Rating 3.2A
Current - Saturation 2.4A
DC Resistance (DCR) 31 mOhm Max
Temperature Range - Operating -40°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.118" (3.00mm)
Win Source Part Number 1095016-SD7030-5R0-R
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SD7030-5R0-R CAD Model

Description

The Eaton 1095016-SD7030-5R0-R is a wirewound inductor that is designed for use in various electronic applications.

  • Manufacturer: Eaton
  • Current Rating: 3.2A
  • Inductance: 4.9μH
  • Mounting: SMD (SMT)
  • Tolerance: ±30%
  • DC Resistance (DCR): 31 mOhm Max
  • Height: 0.118" (3.00mm)
  • Core Material: Ferrite
