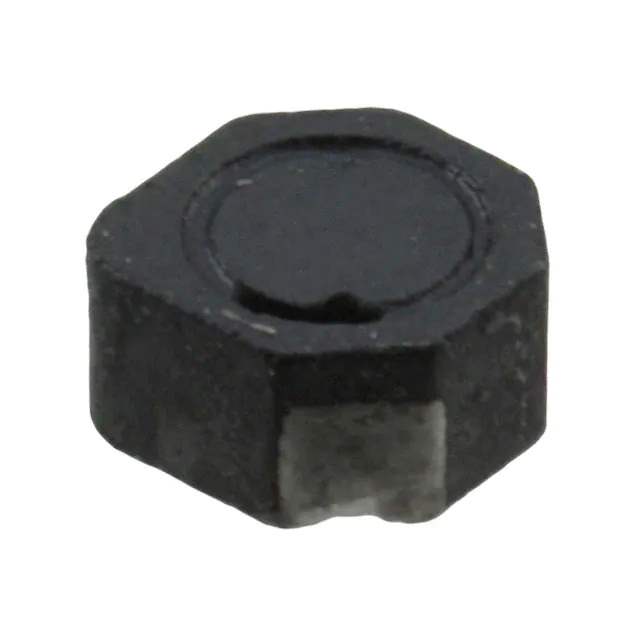

SD3118-150-R Real Image
Same model may have multiple batches, images only for reference.

SD3118-150-R

Part No SD3118-150-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 15UH 620MA 440MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Eaton Bussmann
Series SD3118
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 620 mA
Current - Saturation (Isat) 750mA
Shielding Shielded
DC Resistance (DCR) 440mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.122" L x 0.122" W (3.10mm x 3.10mm)
Height - Seated (Max) 0.071" (1.80mm)
Standard Package 4,100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 893932-SD3118-150-R
Ultra Librarian 3D Model Ultra Librarian SD3118-150-R CAD Model

Description

The SD3118-150-R is a drum core, wirewound inductor from Eaton Bussmann's SD3118 series.

  • Type: shielded inductor
  • Size: 0.122" L x 0.122" W (3.10mm x 3.10mm)
  • Inductance: 15 µH with a tolerance of ±20%
  • Maximum Seated Height: 0.071" (1.80mm)
  • DC Resistance (DCR): 440mOhm
  • Operating Temperature Range: from -40°C to 125°C
  • Current Rating: 620 mA
  • Package: nonstandard
  • Packaging: tape & reel
  • Status: active product
  • Standard Package: 4,100 pcs
  • Core Material: ferrite
