Same model may have multiple batches, images only for reference.

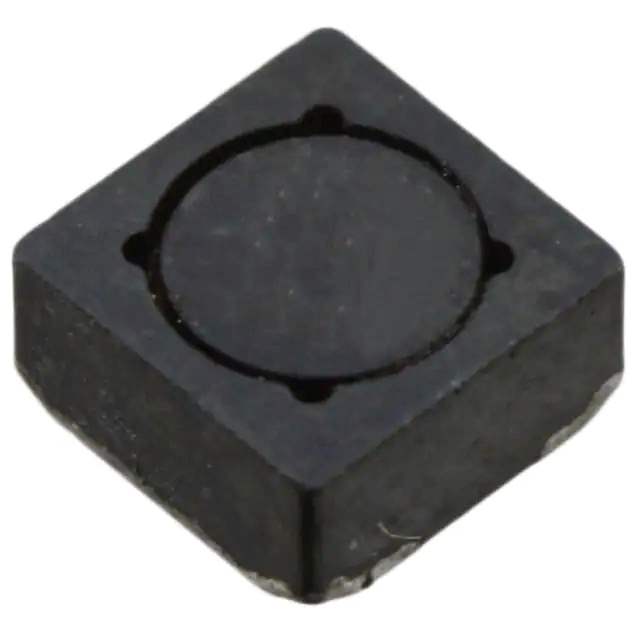

SD25-4R7-R Real Image
Same model may have multiple batches, images only for reference.

SD25-4R7-R

Part No SD25-4R7-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 4.7UH 2.39A 46.7 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Eaton Bussmann
Series SD
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 2.39 A
Current - Saturation (Isat) 1.83A
Shielding Shielded
DC Resistance (DCR) 46.7mOhm
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.205" L x 0.205" W (5.20mm x 5.20mm)
Height - Seated (Max) 0.098" (2.50mm)
Standard Package 2,900 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 664648-SD25-4R7-R
Ultra Librarian 3D Model Ultra Librarian SD25-4R7-R CAD Model

Description

The 664648-SD25-4R7-R is a fixed inductor from the SD series by Eaton Bussmann.

  • Core Type: Drum Core
  • Mounting Type: Surface Mount
  • Size: 0.205" L x 0.205" W (5.20mm x 5.20mm)
  • Shielding: Shielded
  • Inductance: 4.7 µH
  • Height - Seated (Max): 0.098" (2.50mm)
  • DC Resistance (DCR): 46.7mOhm
  • Operating Temperature: -40°C to 85°C
  • Current Rating: 2.39A
  • Package / Case: Nonstandard
  • Packaging: Tape & Reel (TR)
  • Status: Active
