Same model may have multiple batches, images only for reference.

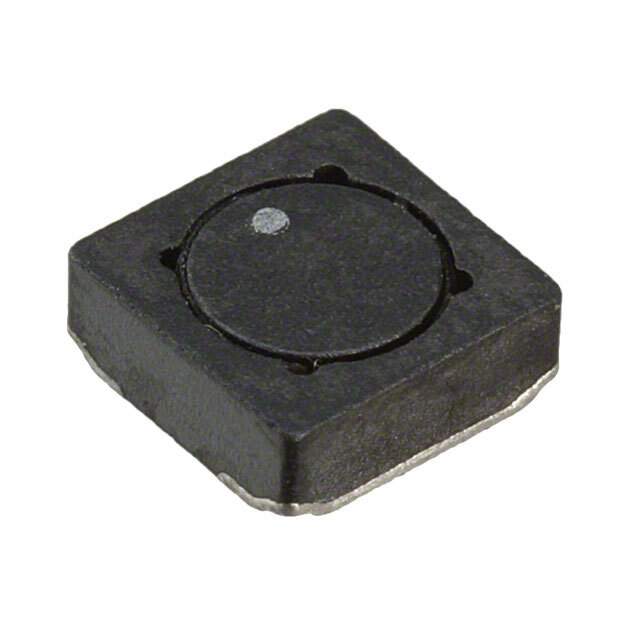

SD20-100-R Real Image
Same model may have multiple batches, images only for reference.

SD20-100-R

Part No SD20-100-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 10UH 1.53A 110MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Estimated Pruduction Lead Time 15 Weeks
Features Shielded Wirewound Inductor 110mOhm Nonstandard
Manufacturer Eaton Bussmann
Series SD
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount
Package Nonstandard
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 283-4252-1, SD20-100, 283-4252-2, SD20-100-R-ND, SD20-100-ND, 283-4252-6
Quantity per package 2900
Popularity High
Supply and Demand Status Balance
Win Source Part Number 933199-SD20-100-R
Ultra Librarian 3D Model Ultra Librarian SD20-100-R CAD Model

Description

The Eaton Bussmann SD20-100-R is a shielded wirewound inductor with a nonstandard package.

  • Series: SD
  • Mounting: Surface Mount
  • Current: 100mA
  • Quantity per Package: 2900
  • Operating Temperature: -40°C to 85°C
  • Production Lead Time: 15 weeks (estimated)
  • ECCN: EAR99
  • Popularity: High
