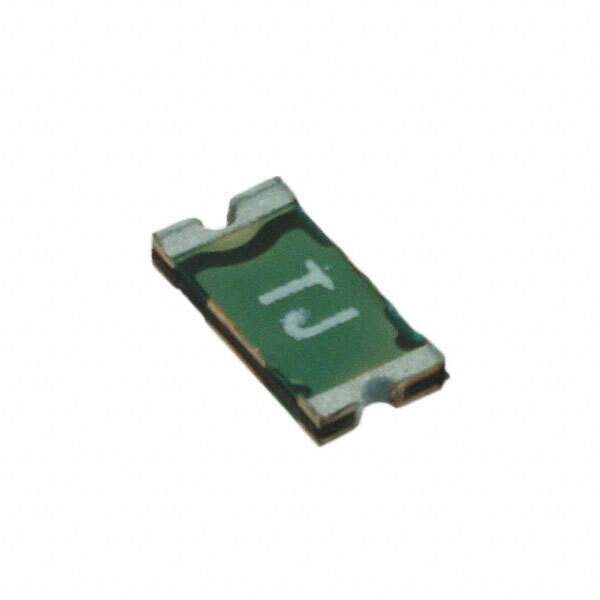

PTS120624V020 Real Image
Same model may have multiple batches, images only for reference.

PTS120624V020

Part No PTS120624V020
Manufacturer Eaton Bussmann
Catalog PTC Resettable Fuses
Description PTC Resettable Fuse 0.2A(hold) 0.42A(trip) 24VDC 100A 0.6W 0.1s 0.65Ohm SMD Solder Pad 1206 T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals TUV, cULus
Mounting SMD (SMT)
Case / Package 1206
Case Code (Imperial) 1206
Case / Package 3216
Height 680 µm
Hold Current 200 mA
Length 3.5 mm
Max Current Rating 100 A
Maximum Operating Temperature 85 °C
Max Supply Voltage (DC) 24 V
Max Voltage Rating (DC) 24 V
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Terminals 2
Operating Supply Voltage 24 V
Packaging Cut Tape
Power Dissipation 600 mW
Radiation Hardening No
REACH SVHC No SVHC
Resistance 2.6 Ω
RoHS Compliant
Schedule B 8536100040, 8536100040
Termination SMD/SMT
Time to Trip 100 ms
Trip Current 420 mA
Voltage Rating (DC) 24 V
Weight 453.59237 mg
Width 1.8 mm
Win Source Part Number 972139-PTS120624V020
Categories PTC Resettable Fuses
Manufacturer Eaton Bussmann
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian PTS120624V020 CAD Model

Description

The Eaton Bussmann 972139-PTS120624V020 is a PTC Resettable Fuse with a maximum operating voltage of 24V and a maximum current rating of 100A.

  • Maximum Operating Voltage: 24V
  • Maximum Current Rating: 100A
  • Trip Current: 420mA
  • Hold Current: 200mA
  • Resistance: 2.6Ω
  • Power Dissipation: 600mW
  • Time to Trip: 100ms
  • Terminals: Two
  • Mounting: Surface mountable
  • Package Size: 3216
  • Approvals: TUV and cULus approved
  • RoHS: Compliant
  • Maximum Operating Temperature: 85°C
  • Minimum Operating Temperature: -40°C
