Mfr. Part No. Qty. Price

No items in the cart

View Cart
Same model may have multiple batches, images only for reference.

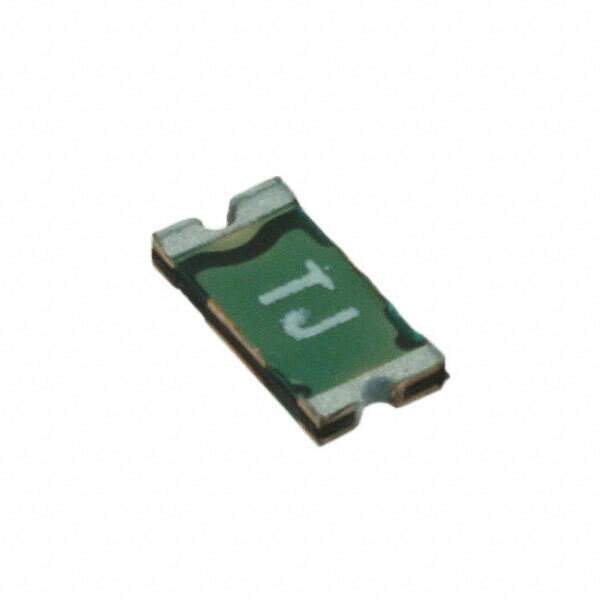

PTS120615V050 Real Image
Same model may have multiple batches, images only for reference.

PTS120615V050

Part No PTS120615V050
Manufacturer Eaton Bussmann
Catalog PTC Resettable Fuses
Description PTC RESETTABLE SMD 1206 15V 0.5A
Datasheet
PTS120615V050 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 15V
Current - Max 100A
Current - Hold (Ih) (Max) 500mA
Current - Trip (It) 1A
Time to Trip 100ms
Resistance - Initial (Ri) (Min) 150 mOhm
Resistance - Post Trip (R1) (Max) 700 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.128" L x 0.065" W (3.25mm x 1.65mm)
Thickness (Max) 0.042" (1.06mm)
Approvals cURus, TUV
Win Source Part Number 004481-PTS120615V050
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PTS120615V050 CAD Model

Description

The Eaton Bussmann PTS120615V050 is a polymeric resettable fuse with a maximum voltage rating of 15V and a maximum current rating of 100A.

  • Voltage Rating: 15V
  • Current Rating: 100A
  • Current Hold: 500mA
  • Time to Trip: 100ms
  • Applications: Portable devices, automotive electronics, and industrial control systems
  • Popularity: Medium
  • Status: Balance of supply and demand
