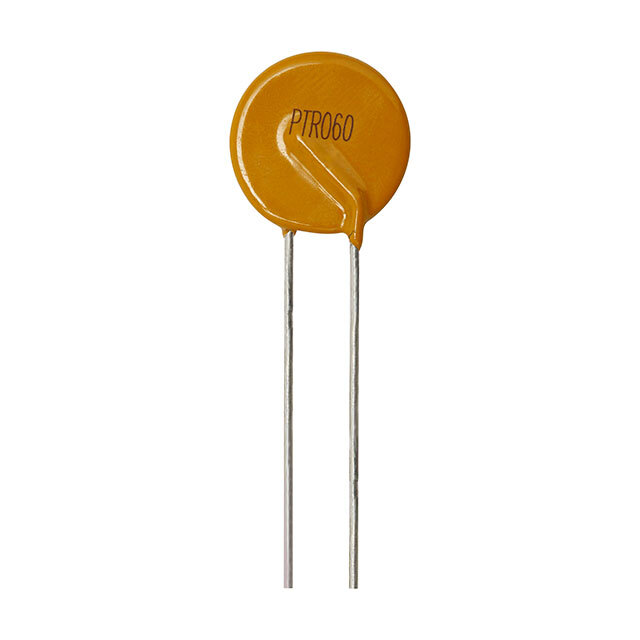

Same model may have multiple batches, images only for reference.
PTR016V0700-BK Eaton Bussmann – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PTR016V0700-BK

Part No PTR016V0700-BK
Manufacturer Eaton Bussmann
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 16V 7A RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Polymeric
Voltage - Max 16V
Current - Hold (Ih) (Max) 7 A
Current - Trip (It) 11.9 A
Current - Max 100 A
Time to Trip 3.5 s
Resistance - Initial (Ri) (Min) 6 mOhms
Resistance - Post Trip (R1) (Max) 20 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Case / Package Radial, Disc
Size / Dimension 0.441" L x 0.122" W (11.20mm x 3.10mm)
Height - Seated (Max) 0.776" (19.70mm)
Lead Spacing 0.197\
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1605435-PTR016V0700-BK
Ultra Librarian 3D Model Ultra Librarian PTR016V0700-BK CAD Model
