Same model may have multiple batches, images only for reference.

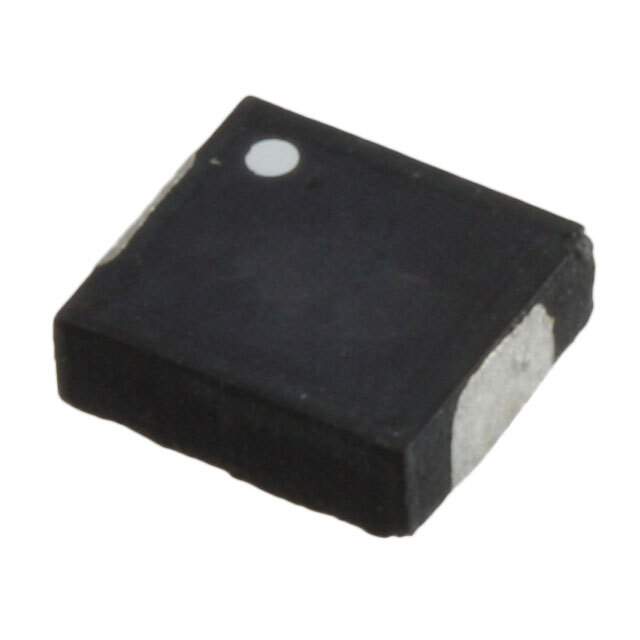

MPI4040R1-R15-R Real Image
Same model may have multiple batches, images only for reference.

MPI4040R1-R15-R

Part No MPI4040R1-R15-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 150NH 7A 11 MOHM SMD
Datasheet
MPI4040R1-R15-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Obsolete(EOL)
Type Wirewound
Material - Core Metal Composite
Inductance 150nH
Tolerance ±20%
Current Rating 7A
Current - Saturation 26A
DC Resistance (DCR) 11 mOhm
Temperature Range - Operating -55°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 099610-MPI4040R1-R15-R
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Power Management, Industrial, Computers & Computer Peripherals, Consumer Electronics, Communications & Networking
Ultra Librarian 3D Model Ultra Librarian MPI4040R1-R15-R CAD Model

Description

The Eaton Bussmann 099610-MPI4040R1-R15-R is a wirewound type inductor with a current rating of 7A and an inductance of 150nH.

  • Current Rating: 7A
  • Inductance: 150nH
  • Tolerance: ±20%
  • DC Resistance (DCR): 11 mOhm
  • Height: 0.047" (1.20mm)
  • Mounting: SMD (SMT)
  • Core Material: metal composite
  • Current Saturation: 26A

This inductor is used in power management, industrial, computers & computer peripherals, consumer electronics, communications & networking applications.

It has a high popularity and sufficient supply and demand status. in the open market.
