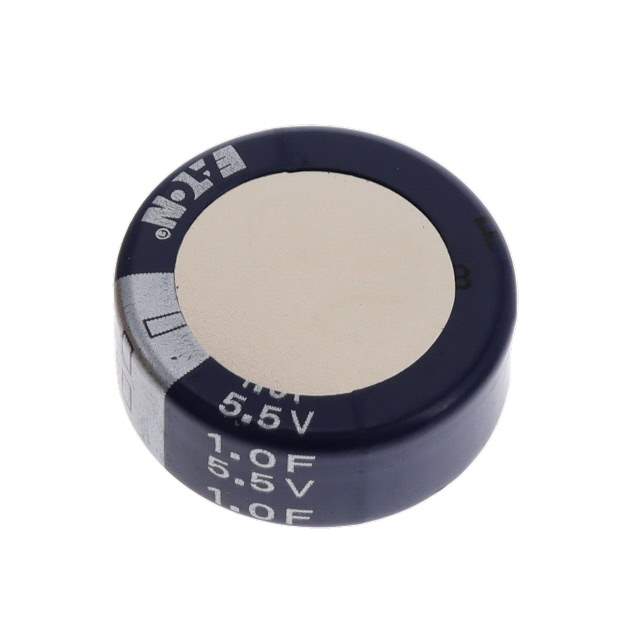

KW-5R5C105H-R Real Image
Same model may have multiple batches, images only for reference.

KW-5R5C105H-R

Part No KW-5R5C105H-R
Manufacturer Eaton Bussmann
Catalog Electric Double Layer Capacitors, Supercaps
Description CAP 1F -20% +80% 5.5V T/H / 1 F (EDLC) Supercapacitor 5.5 V Radial, Can 30Ohm @ 1kHz 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr Eaton - Electronics Division
Series KW
Package Bulk
Capacitance 1 F
Tolerance -20%, +80%
Voltage - Rated 5.5 V
ESR (Equivalent Series Resistance) 30Ohm @ 1kHz
Lifetime @ Temp. 2000 Hrs @ 85°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Radial, Can
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.846" Dia (21.50mm)
Height - Seated (Max) 0.348" (8.85mm)
Temperature Range - Operating -40°C ~ 85°C
Standard Package 500
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.29.0040
Win Source Part Number 1337150-KW-5R5C105H-R
Ultra Librarian 3D Model Ultra Librarian KW-5R5C105H-R CAD Model

Description

The KW series electric double-layer capacitors (EDLC) are a type of supercapacitor, and they are manufactured by Eaton - Electronics Division.

  • Capacitance: 1 F
  • Voltage Rating: 5.5 V
  • Tolerance: -20% to +80%
  • ESR (Equivalent Series Resistance): 30 Ohm @ 1 kHz
  • Lifetime: 2000 hours @ 85°C
  • Mounting Type: Through Hole
  • Package/Case: Radial, Can
  • Operating Temperature: -40°C to 85°C
  • Standard Package: 500
