Same model may have multiple batches, images only for reference.

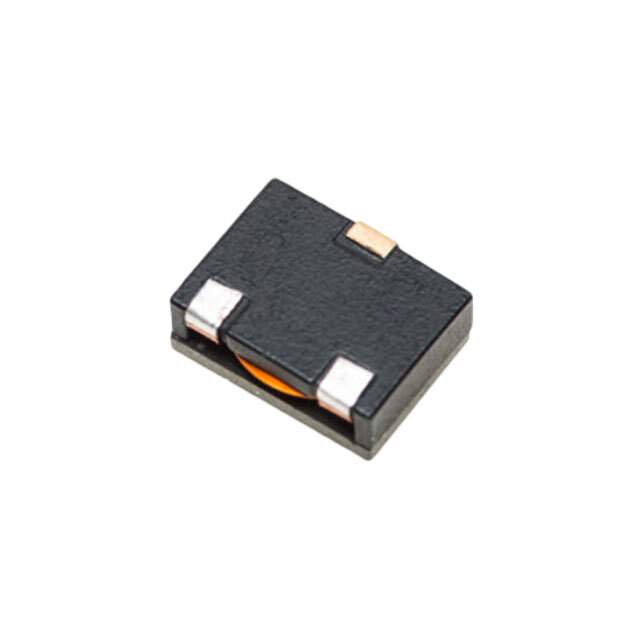

HCV1206-R90-R Real Image
Same model may have multiple batches, images only for reference.

HCV1206-R90-R

Part No HCV1206-R90-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 900NH 14A 4.6 MOHM SMD / 900 nH Unshielded Drum Core, Wirewound Inductor 14 A 4.6mOhm Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Eaton - Electronics Division
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 900 nH
Tolerance ±10%
Current Rating (Amps) 14 A
Current - Saturation (Isat) 28A
Shielding Unshielded
DC Resistance (DCR) 4.6mOhm
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.480" L x 0.386" W (12.20mm x 9.80mm)
Height - Seated (Max) 0.201" (5.10mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 283-4586-2,283-4586-1,283-4586-6
Standard Package 550
Win Source Part Number 1327527-HCV1206-R90-R
Ultra Librarian 3D Model Ultra Librarian HCV1206-R90-R CAD Model

Description

The Eaton - Electronics Division 1327527-HCV1206-R90-R fixed inductor is a circuit protection device that is ideal for various applications.

  • Packaging: Reel - TR
  • Mounting: Surface Mount
  • Dimension: 0.480" L x 0.386" W (12.20mm x 9.80mm)
  • Inductance: 900 nH
  • Tolerance: ±10%
  • DC Resistance (DCR): 4.6mOhm
  • Classification: Fixed Inductors
  • Standard Package: 550
  • MSL Level: 1 (unlimited)
  • Current Rating: 14A
  • HTSUS Code: 8504.50.4000
  • RoHS Compliant: Yes
