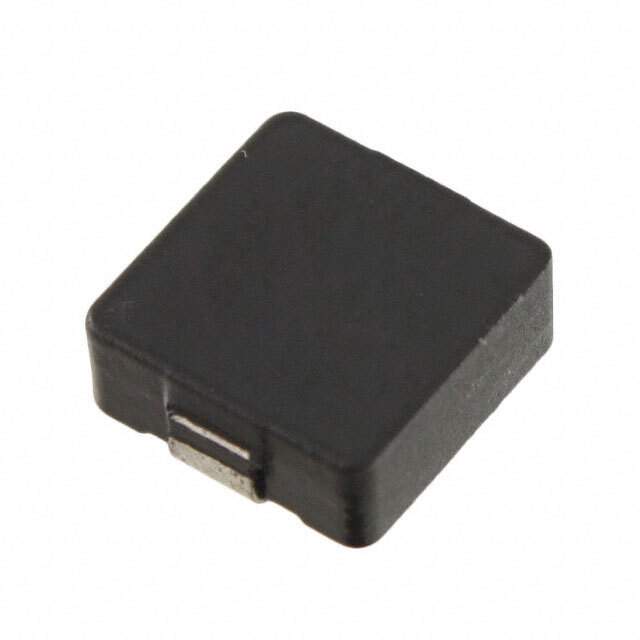

HCM1104-R56-R Real Image
Same model may have multiple batches, images only for reference.

HCM1104-R56-R

Part No HCM1104-R56-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 560NH 25A 1.8 MOHM SMD / 560 nH Shielded Drum Core, Wirewound Inductor 25 A 1.8mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Eaton - Electronics Division
Series HCM1104
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Iron Powder
Inductance 560 nH
Tolerance ±20%
Current Rating (Amps) 25 A
Current - Saturation (Isat) 32A
Shielding Shielded
DC Resistance (DCR) 1.8mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.437" L x 0.394" W (11.10mm x 10.00mm)
Height - Seated (Max) 0.157" (4.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names HCM1104R56R,513-1713-6,513-1713-2,513-1713-1
Standard Package 850
Win Source Part Number 1197213-HCM1104-R56-R
Ultra Librarian 3D Model Ultra Librarian HCM1104-R56-R CAD Model

Description

The Eaton HCM1104 series inductors are used in various applications such as power supplies, filters, and DC-DC converters.

  • Core Type: Drum core, wirewound
  • Package: Shielded
  • Inductance: 560 nH
  • Height: 0.157" (4.00mm)
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • Material: Iron powder
  • DC Resistance (DCR): 1.8mOhm Max.
  • Operating Temperature: -55°C to 125°C
  • Package: Tape & reel
  • Dimension: 0.437" L x 0.394" W (11.10mm x 10.00mm)
  • Popularity: Moderately popular
  • MSL Level: Unlimited
