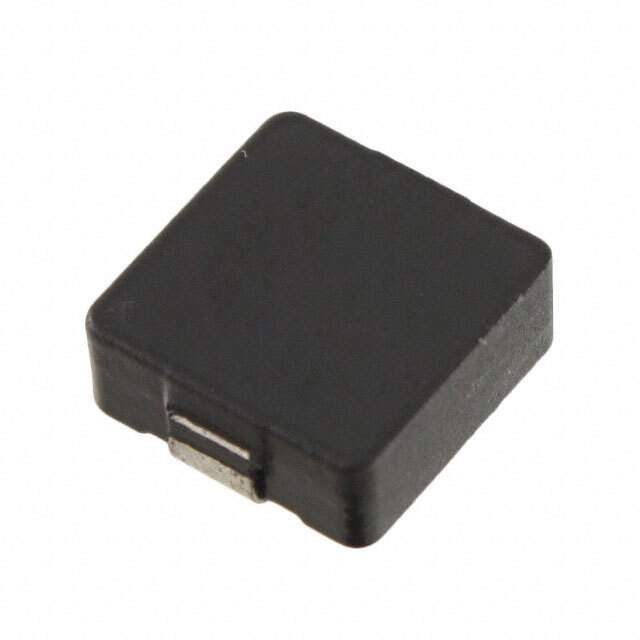

Same model may have multiple batches, images only for reference.

HCM1104-R45-R

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	HCM1104-R45-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 450NH 29A 1.23MOHM SMD / 450 nH Shielded Drum Core, Wirewound Inductor 29 A 1.23mOhm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Eaton - Electronics Division
Series	HCM1104
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Iron Powder
Inductance	450 nH
Tolerance	±20%
Current Rating (Amps)	29 A
Current - Saturation (Isat)	36A
Shielding	Shielded
DC Resistance (DCR)	1.23mOhm Max
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.437" L x 0.394" W (11.10mm x 10.00mm)
Height - Seated (Max)	0.157" (4.00mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	283-4294-1,283-4294-2,HCM1104-R45-R-ND,283-4294-6
Standard Package	850
Win Source Part Number	1183755-HCM1104-R45-R
Ultra Librarian 3D Model	Ultra Librarian HCM1104-R45-R CAD Model

Alternative Products

Description

The HCM1104-R45-R is a shielded drum core, wirewound inductor that is ideal for use in a variety of electronic applications.

Inductance: 450 nH with a tolerance of ±20%
DC Resistance: 1.23mOhm Max
Maximum Current Rating: 29A with a saturation current of 36A
Height: 0.157" (4.00mm)
Dimension: 0.437" L x 0.394" W (11.10mm x 10.00mm)
Operating Temperature Range: -55°C to 125°C
Packaging: Tape and reel
Package: Nonstandard
Core Material: Iron powder
Alternative Part Number: HCM1104R45R
RoHS: Compliant
