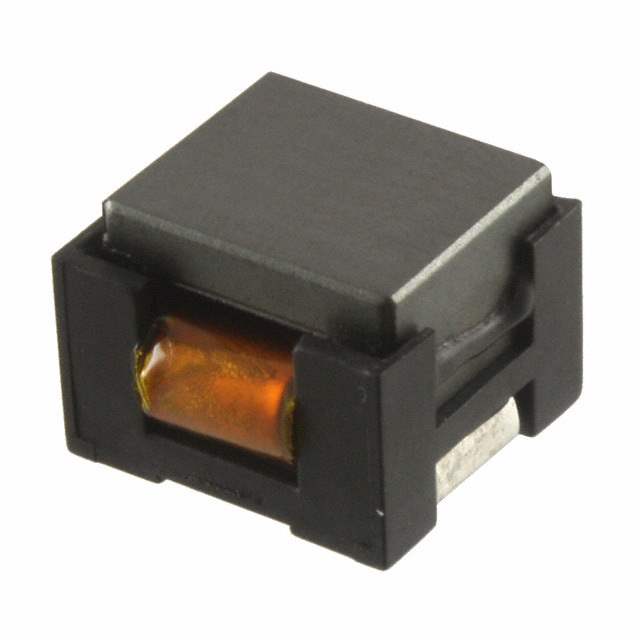

HC1-R22-R Real Image
Same model may have multiple batches, images only for reference.

HC1-R22-R

Part No HC1-R22-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 220NH 51.42A 0.36 MOHM
Datasheet
HC1-R22-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 220nH
Tolerance ±15%
Current Rating 51.42A
Current - Saturation 40.5A
DC Resistance (DCR) 0.36 mOhm Max
Temperature Range - Operating -40°C to 125°C
Frequency - Test 300kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.394" (10.00mm)
Win Source Part Number 001487-HC1-R22-R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HC1-R22-R CAD Model

Description

The Eaton Bussmann 001487-HC1-R22-R is a wirewound inductor designed for inductors, coils, and chokes.

  • Current Rating: 51.42A
  • Inductance: 220nH
  • Height: 0.394 inches (10.00mm)
  • Mounting: SMD (SMT)
  • Tolerance: ±15%
  • Core Material: Ferrite
  • Saturation Current: 40.5A
  • Frequency Test: 300kHz
  • DC Resistance (DCR): 0.36 mOhm Max
  • Popularity: Medium
