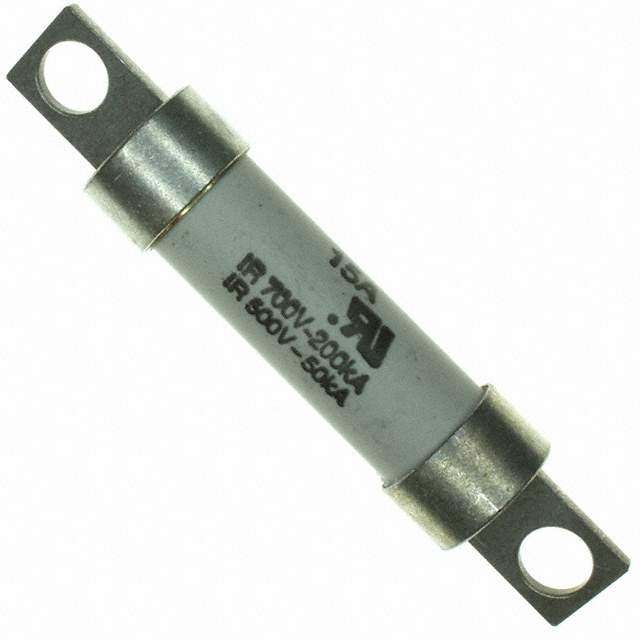

FWP-60B Real Image
Same model may have multiple batches, images only for reference.

FWP-60B

Part No FWP-60B
Manufacturer Eaton Bussmann
Catalog Electrical, Specialty Fuses
Description FUSE CARTRIDGE 60A 700VAC/VDC / High Speed Fuses
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Eaton - Bussmann Electrical Division
Packaging Bulk
Fuse Type Cartridge
Current Rating (Amps) 60A
Voltage Rating - AC 700V
Voltage Rating - DC 700V
Applications Electrical, Industrial
Approvals CE, CSA, UR
Breaking Capacity at Rated Voltage 200kA AC, 50kA DC
Mounting Style Bolt
Manufacturer Package Cylindrical, Blade Terminal (Bolt)
Dimension 0.813" Dia x 2.750" L (20.65mm x 69.85mm)
Melting I2t 210
Manufacturer Pack Quantity 5
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813125-FWP-60B
Ultra Librarian 3D Model Ultra Librarian FWP-60B CAD Model

Description

The FWP-60B is a cartridge-style bolt-mount fuse.

  • Voltage Rating: 700V AC/DC
  • Breaking Capacity: 200kA AC, 50kA DC @ Rated Voltage
  • Current Rating: 60A
  • Packaging: Bulk
  • Dimension: 0.813 inches (20.65mm) Dia x 2.750 inches (69.85mm) L
  • Mounting: Bolt
  • Approvals: CE, CSA, UR
  • Temperature Range: -
  • Manufacturer Pack Quantity: 5
  • MSL Level: 1 (unlimited)
  • ECCN: EAR99
