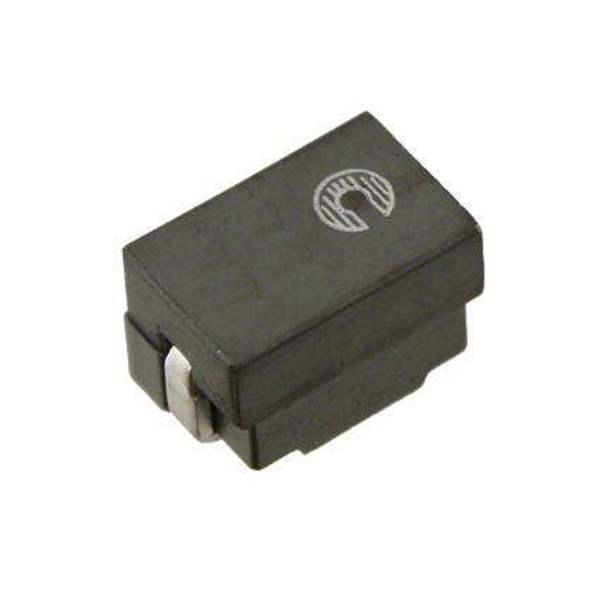

FP1107R1-R07-REaton - Electronics Division
Same model may have multiple batches, images only for reference.

FP1107R1-R07-R

Part No FP1107R1-R07-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 70NH 55A 0.29 MOHM SMD
Datasheet
FP1107R1-R07-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Eaton - Electronics Division
Category Inductors, Coils, Chokes Fixed Inductors
Packaging  Tape & Reel (TR)
Part Status Active
Type Drum Core, Wirewound
Tolerance ±10%
Inductance 70 nH
DC Resistance (DCR) 0.29mOhm
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Win Source Part Number WS1305709-FP1107R1-R07-R
Ultra Librarian 3D Model Ultra Librarian FP1107R1-R07-R CAD Model

Description

Product features
• High current carrying capacity
• Low core loss, magnetically shielded
• Tight tolerance DCR for sensing circuits
• Magnetically shielded
• Inductance range from 70 nH to 510 nH
• Current range from 42 A to 140 A
• Frequency range up to 2 MHz
• 11 mm x 7.2 mm and 11.2 mm x 8.0 mm footprint surface mount package in 6.5 mm, 7.2 and 7.5 mm heights
• Ferrite core material
• Moisture sensitivity level (MSL): 1
