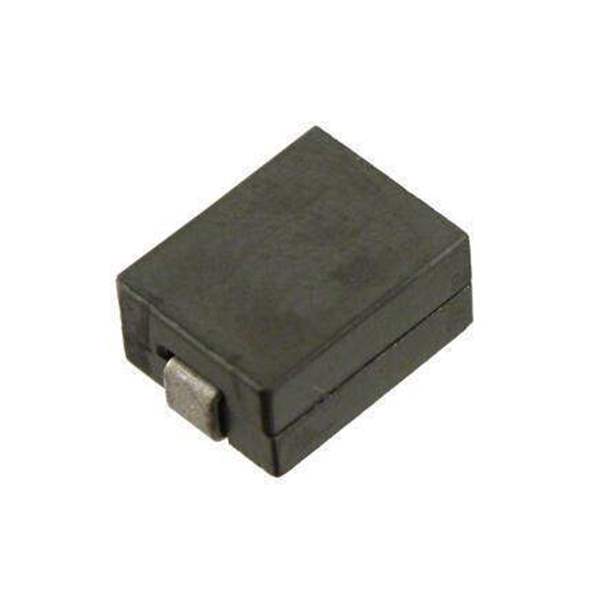

FP1105R1-R15-REaton - Electronics Division
Same model may have multiple batches, images only for reference.

FP1105R1-R15-R

Part No FP1105R1-R15-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 150NH 46A 0.35MOHM SMD
Datasheet
FP1105R1-R15-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Eaton - Electronics Division
Category Inductors, Coils, Chokes Fixed Inductors
Part Status Active
Type Drum Core, Wirewound
Inductance 150 nH
Tolerance ±10%
DC Resistance (DCR) 0.35mOhm
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case Nonstandard
Win Source Part Number WS1305715-FP1105R1-R15-R
Ultra Librarian 3D Model Ultra Librarian FP1105R1-R15-R CAD Model

Description

Product features • 11.0 x 8.0 x 4.90mm surface mount package<br /> • Ferrite core material • High current carrying capacity • Low core losses<br /> • Controlled DCR tolerance for sensing circuits • Inductance range from 101nH to 226nH • Current range from 39 to 81Amps • Frequency range up to 2MHz • Halogen free, lead free, RoHS compliant<br />
