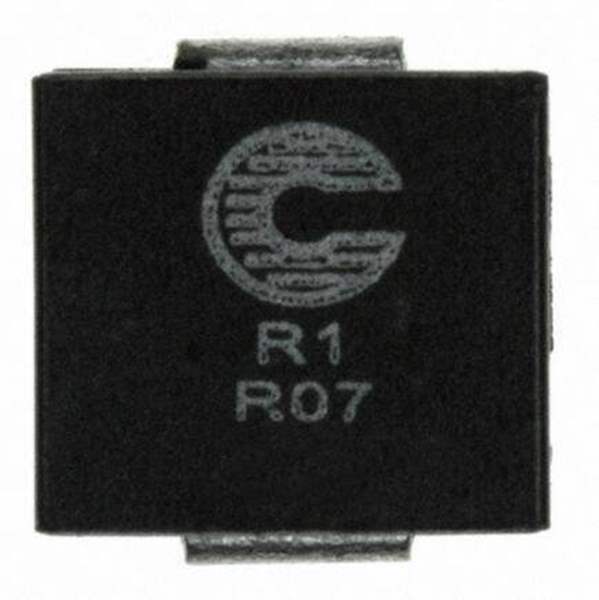

Same model may have multiple batches, images only for reference.

FP0805R1-R07-R

Name: FP0805R1-R07-R
Brand: Eaton Bussmann
SKU: WS1305695
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	FP0805R1-R07-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 72NH 65A 0.17 MOHM SMD
Datasheet	FP0805R1-R07-R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	Cross
Manufacturer	Eaton - Electronics Division
Category	Inductors, Coils, Chokes Fixed Inductors
Part Status	Active
Type	Drum Core, Wirewound
Inductance	72 nH
Shielding	Unshielded
DC Resistance (DCR)	0.17mOhm
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Win Source Part Number	WS1305695-FP0805R1-R07-R
Ultra Librarian 3D Model	Ultra Librarian FP0805R1-R07-R CAD Model

Alternative Products

Description

Product features • 7.5 x 7.6 x 5mm surface mount package • Ferrite core material • High current carrying capacity, Low core losses<br /> • Controlled DCR tolerance for sensing circuits • Inductance range from 32nH to 200nH • Current range from 20 to 110 Amps<br /> • Frequency range up to 2MHz<br />
