Same model may have multiple batches, images only for reference.

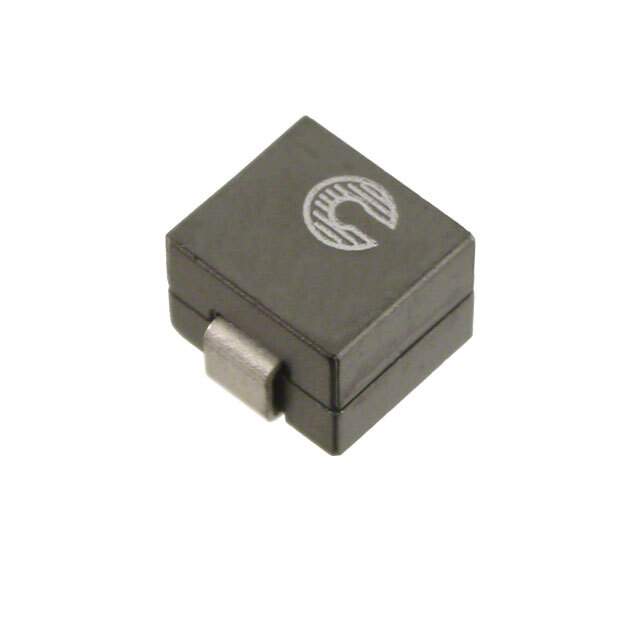

FP0705R3-R15-R Real Image
Same model may have multiple batches, images only for reference.

FP0705R3-R15-R

Part No FP0705R3-R15-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 150NH 32A 0.46MOHM SMD / 150 nH Unshielded Drum Core, Wirewound Inductor 32 A 0.46mOhm Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Eaton - Electronics Division
Series FLAT-PAC, FP0705
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 150 nH
Tolerance ±10%
Current Rating (Amps) 32 A
Current - Saturation (Isat) 30A
Shielding Unshielded
DC Resistance (DCR) 0.46mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) 0.195" (4.95mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names 513-1611-1,513-1611-6,FP0705R3R15R,513-1611-2
Standard Package 950
Win Source Part Number 972902-FP0705R3-R15-R
Ultra Librarian 3D Model Ultra Librarian FP0705R3-R15-R CAD Model

Description

The Eaton Bussmann 972902-FP0705R3-R15-R is a wirewound inductor with an inductance of 150nH.

  • Maximum Current Rating: 32A
  • DC Resistance: 0.46mOhm
  • Mounting: Surface mountable
  • Package Size: Non-standard package size
  • Tolerance: ±10%
  • Suitable For: Use in electronic devices that require filtering, energy storage, and power conversion
  • ECCN: EAR99
  • HTSUS: 8504.50.4000
