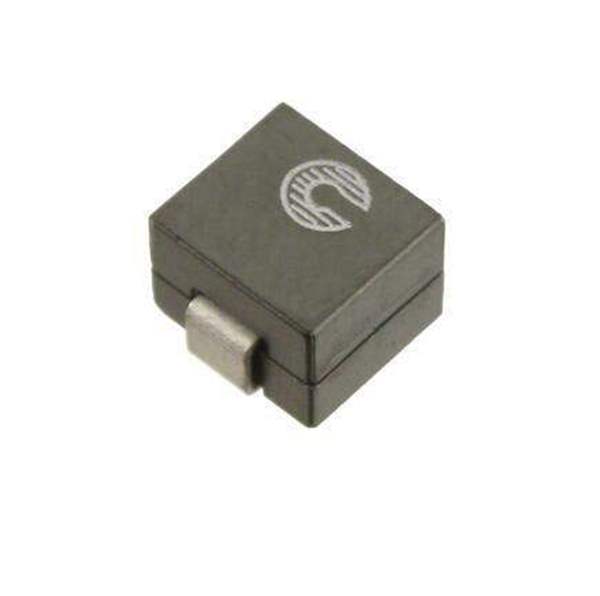

FP0705R1-R22-R Eaton - Electronics Division
Same model may have multiple batches, images only for reference.

FP0705R1-R22-R

Part No FP0705R1-R22-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 220NH 43A 0.25MOHM SMD
Datasheet
FP0705R1-R22-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Eaton - Electronics Division
Category Inductors, Coils, Chokes Fixed Inductors
Part Status Active
Type Drum Core, Wirewound
Inductance 220 nH
Tolerance ±10%
DC Resistance (DCR) 0.25mOhm
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Win Source Part Number WS1305700-FP0705R1-R22-R
Ultra Librarian 3D Model Ultra Librarian FP0705R1-R22-R CAD Model

Description

Product features
• High current carrying capacity
• Low core loss
• Inductance Range from 72 nH to 220 nH
• Current range from 20 A to 65 A
• 7.0 mm x 7.0 mm footprint surface mount package in a 4.95 mm height
• Ferrite core material
• Halogen free, lead free, RoHS compliant
