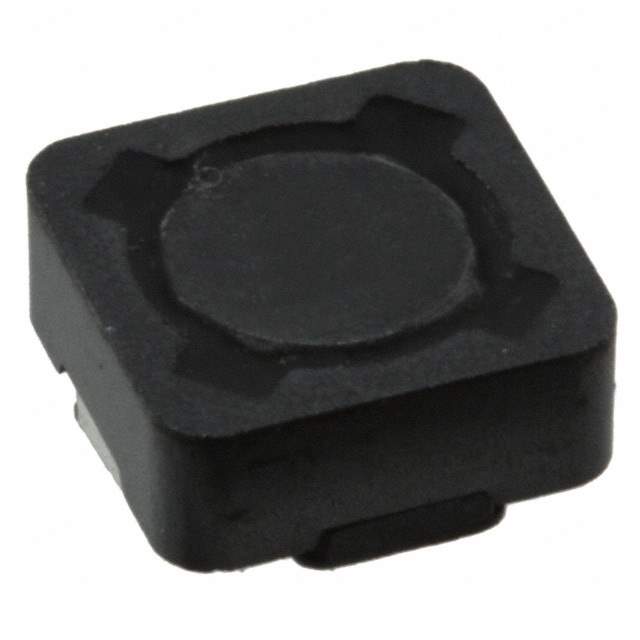

Same model may have multiple batches, images only for reference.

DRA73-3R3-R

Name: DRA73-3R3-R
Brand: Eaton Bussmann
SKU: 988383
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	DRA73-3R3-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 3.3UH 3.59A 22MOHM SMD / 3.3 µH Shielded Wirewound Inductor 3.59 A 22mOhm Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Eaton - Electronics Division
Series	DRA
Package	Tape & Reel
Type	Wirewound
Inductance	3.3 µH
Tolerance	±20%
Current Rating (Amps)	3.59 A
Current - Saturation (Isat)	4.35A
Shielding	Shielded
DC Resistance (DCR)	22mOhm
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 165°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.299" L x 0.299" W (7.60mm x 7.60mm)
Height - Seated (Max)	0.140" (3.55mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	283-3614-2,283-3614-1,DRA73-3R3-R-ND,283-3614-6,DRA733R3R
Standard Package	1,350
Win Source Part Number	988383-DRA73-3R3-R
Ultra Librarian 3D Model	Ultra Librarian DRA73-3R3-R CAD Model

Alternative Products

Description

The DRA73-3R3-R is a wirewound type inductor with a shielded design.

Type: Wirewound, Shielded
Inductance: 3.3 µH
Tolerance: ±20%
Series: DRA series
AEC-Q200: Rated
Package: Nonstandard
Packaging: Tape & reel
DC Resistance (DCR): 22mOhm
Current Rating: 3.59 A
Temperature Range: -40°C to 165°C
Dimensions: 0.299" L x 0.299" W (7.60mm x 7.60mm)
Alternative Parts: 283-3614-2, 283-3614-1, DRA73-3R3-R-ND, 283-3614-6, and DRA733R3R
