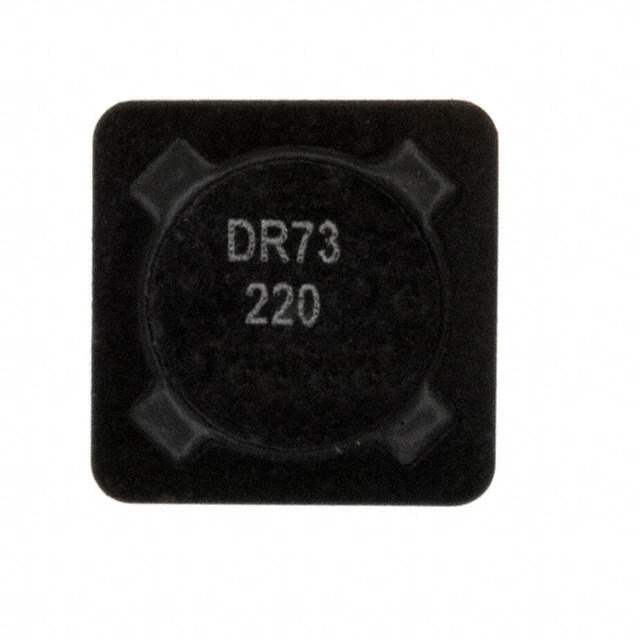

DR73-220-R Real Image
Same model may have multiple batches, images only for reference.

DR73-220-R

Part No DR73-220-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 22UH 1.62A 107MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Eaton Bussmann
Series DR
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 1.62 A
Current - Saturation (Isat) 1.67A
Shielding Shielded
DC Resistance (DCR) 107mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.299" L x 0.299" W (7.60mm x 7.60mm)
Height - Seated (Max) 0.140" (3.55mm)
Standard Package 1,350 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 585844-DR73-220-R
Ultra Librarian 3D Model Ultra Librarian DR73-220-R CAD Model

Description

The 585844-DR73-220-R is a drum core, wirewound inductor from Eaton Bussmann's DR series.

  • Type: shielded inductor
  • Package: tape and reel
  • Size: 0.299" L x 0.299" W (7.60mm x 7.60mm)
  • Maximum Seated Height: 0.140" (3.55mm)
  • Inductance: 22 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 107mOhm
  • Operating Temperature Range: -40°C to 125°C
  • Current Rating: 1.62A
  • Inductance Frequency Test: 100 kHz
  • Core: ferrite
