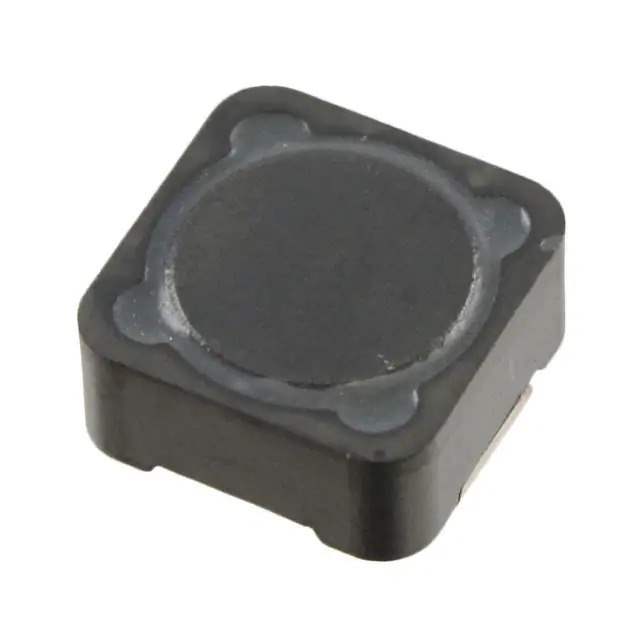

The 585828-DR125-8R2-R is a fixed inductor manufactured by Eaton Bussmann.

• Category: Inductors, Coils, Chokes - Fixed Inductors
• Series: DR
• Core: Drum core, wirewound
• Package: Tape & reel
• Shielding: Shielded
• Size/Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
• Inductance: 8.2 μH ±20%
• Height Seated (Max): 0.236" (6.00mm)
• Standard Package: 600 pieces
• DC Resistance (DCR): 17.6mOhm
• Temperature Range: -40°C to 125°C
• MSL Level: 1 (Unlimited)
• Current Rating: 5.54A
• Inductance Frequency Test: 100 kHz
• HTSUS Code: 8504.50.4000
• Status: Active
