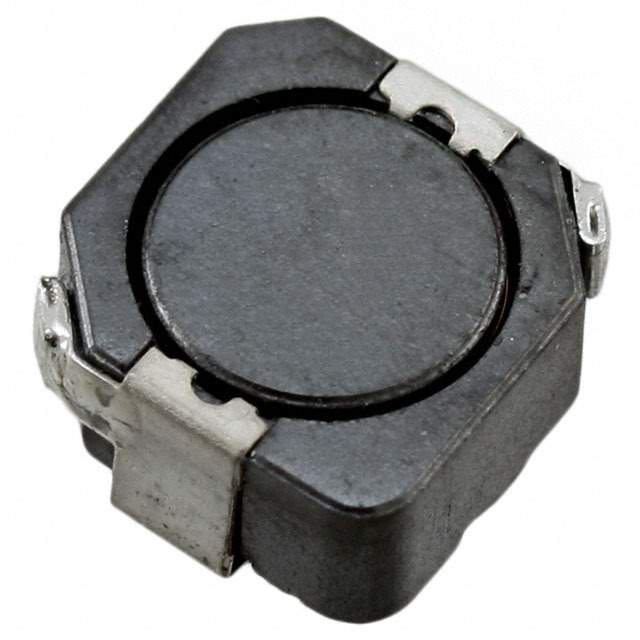

DR1050-471-R Real Image
Same model may have multiple batches, images only for reference.

DR1050-471-R

Part No DR1050-471-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 470UH 640MA 1.069 OHM / 470 µH Shielded Drum Core, Wirewound Inductor 640 mA 1.069Ohm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Eaton - Electronics Division
Series DR1050
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 470 µH
Tolerance ±30%
Current Rating (Amps) 640 mA
Current - Saturation (Isat) 620mA
Shielding Shielded
DC Resistance (DCR) 1.069Ohm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.413" L x 0.406" W (10.50mm x 10.30mm)
Height - Seated (Max) 0.197" (5.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names 283-DR1050-471-RDKR,DR1050-471-R-ND,283-DR1050-471-RTR,283-DR1050-471-RCT
Standard Package 500
Win Source Part Number 1003821-DR1050-471-R
Ultra Librarian 3D Model Ultra Librarian DR1050-471-R CAD Model

Description

The Eaton DR1050 series inductor from Eaton is a high-quality inductor that is perfect for use in a variety of electronic applications.

  • Series: DR1050
  • Package: Tape & Reel
  • Shielding: Shielded
  • Standard Package: 500
  • Mounting Technology: SMD (SMT)
  • Tolerance: ±30%
  • Height: 0.197" (5.00mm)
  • Inductance: 470 µH
  • DC Resistance: 1.069Ohm Max
  • Temperature Range: -40°C to 125°C
  • Dimensions: 0.413" L x 0.406" W (10.50mm x 10.30mm)
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8504.50.4000
  • Manufacturer: Eaton - Electronics Division
