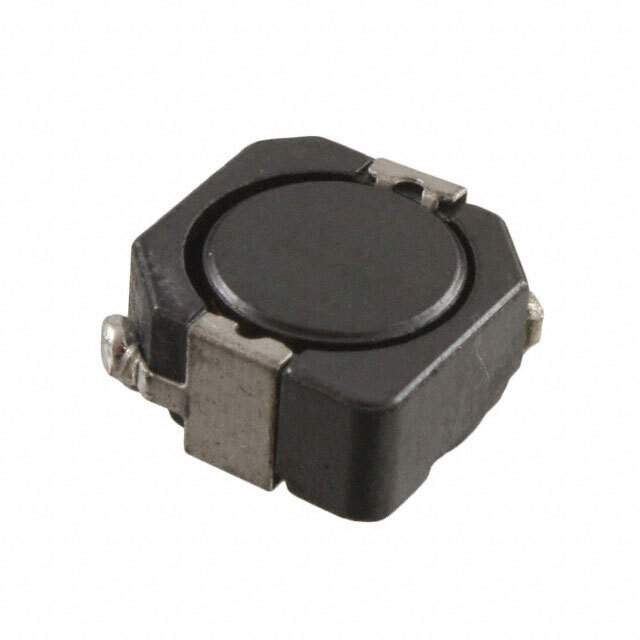

DR1050-3R3-R Real Image
Same model may have multiple batches, images only for reference.

DR1050-3R3-R

Part No DR1050-3R3-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 3.3UH 6.5A 10 MOHM SMD / 3.3 µH Shielded Drum Core, Wirewound Inductor 6.5 A 10mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Eaton - Electronics Division
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 3.3 µH
Tolerance ±30%
Current Rating (Amps) 6.5 A
Current - Saturation (Isat) 8.2A
Shielding Shielded
DC Resistance (DCR) 10mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.413" L x 0.406" W (10.50mm x 10.30mm)
Height - Seated (Max) 0.197" (5.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number DR1050-3R3-R-ND,Q6788063,DR10503R3R,513-1744-6,513-1744-1,513-1744-2
Standard Package 500
Win Source Part Number 1327418-DR1050-3R3-R
Ultra Librarian 3D Model Ultra Librarian DR1050-3R3-R CAD Model

Description

The Eaton - Electronics Division 1327418-DR1050-3R3-R is a fixed inductor with a drum core, wirewound type.

  • Shielded: Yes
  • Inductance: 3.3 μH
  • Current Rating: 6.5A
  • Current Saturation: 8.2A
  • Mounting: Surface
  • Tolerance: ±30%
  • RoHS Status: ROHS3 Compliant
  • Temperature Range: -40°C to 125°C
