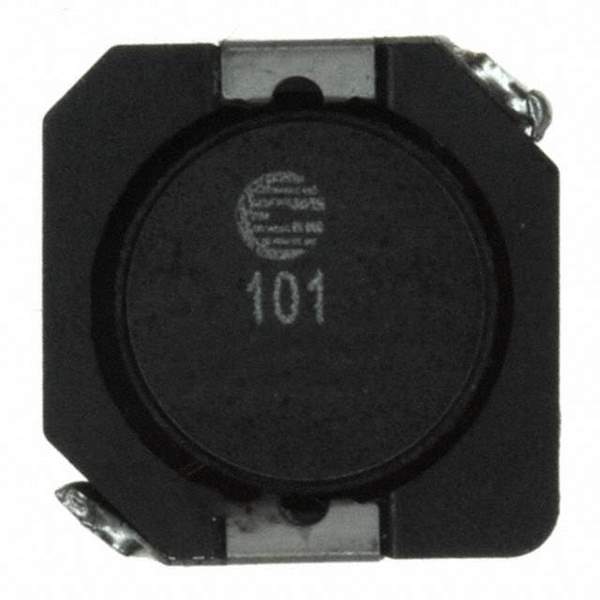

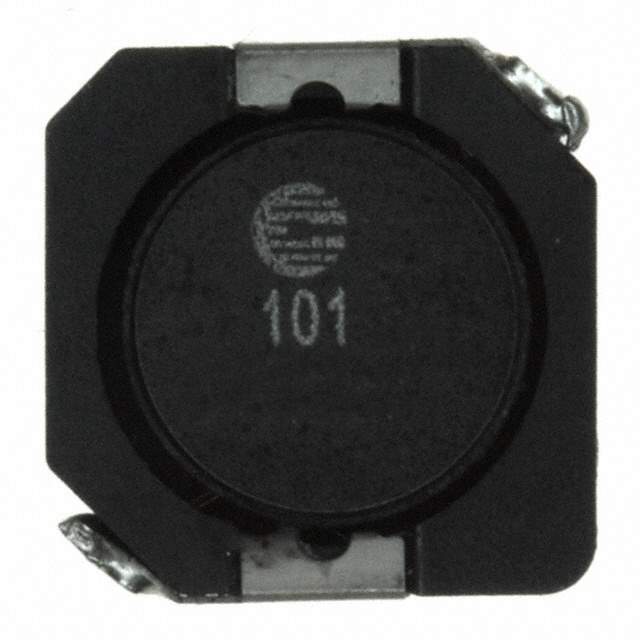

DR1030-101-R Real Image
Same model may have multiple batches, images only for reference.

DR1030-101-R

Part No DR1030-101-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 100UH 860MA 450 MOHM / Inductor Power Shielded Drum Core 100uH 30% 100KHz Ferrite 0.86A 0.45Ohm DCR T/R
Datasheet
DR1030-101-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton
Series DR1030
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 100μH
Tolerance ±30%
Current Rating 860mA
Current - Saturation 1.05A
Shielding Shielded
DC Resistance (DCR) 450 mOhm Max
Operating Temperature Range -40°C ~ 125°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.413" L x 0.405" W (10.50mm x 10.30mm)
Height - Seated (Maximum) 0.118" (3.00mm)
Win Source Part Number 772820-DR1030-101-R
Popularity Medium
Supply and Demand Status Balance
Family Name DR1030
Introduction Date May 26, 2006
ECCN EAR99
Country of Origin China
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian DR1030-101-R CAD Model

Description

The Eaton DR1030-101-R is a wirewound inductor with a shielded design and an inductance of 100μH.

  • Current Rating: 860mA
  • Operating Temperature Range: -40°C to 125°C
  • Package: Nonstandard
  • Mounting Type: SMD
