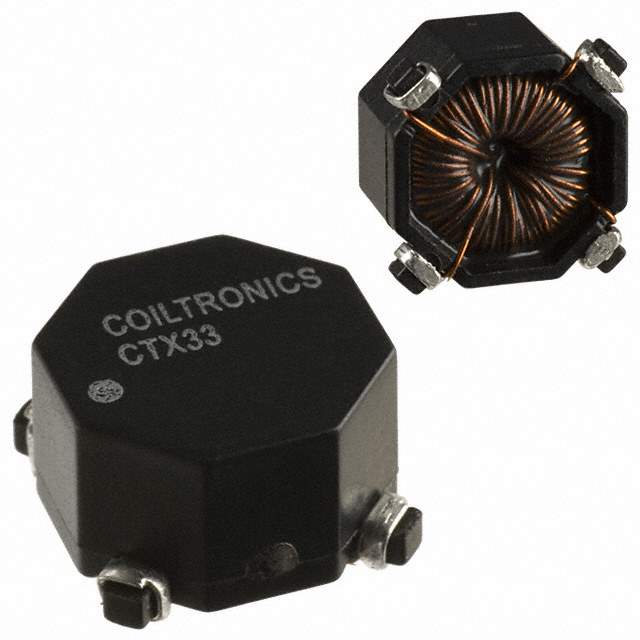

CTX33-2P-R Real Image
Same model may have multiple batches, images only for reference.

CTX33-2P-R

Part No CTX33-2P-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 32.67UH SMD / Unshielded 2 Coil Inductor Array 130.7 µH Inductance - Connected in Series 32.67 µH Inductance - Connected in Parallel 126mOhm Max DC Resistance (DCR) - Parallel 1.3 A Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Eaton - Electronics Division
Series Econo-Pac™
Package Tape & Reel
Number of Coils 2
Inductance - Connected In Parallel 32.67 µH
Inductance - Connected In Series 130.7 µH
Tolerance ±20%
Current Rating - Parallel 1.3 A
Current Rating - Series 650 mA
DC Resistance (DCR) - Parallel 126mOhm Max
DC Resistance (DCR) - Series 503mOhm Max
Shielding Unshielded
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height 0.235" (5.97mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names 513-1033-2,513-1033-1,513-1033-6,CTX332PR,CTX33-2P
Standard Package 800
Win Source Part Number 1020899-CTX33-2P-R
Ultra Librarian 3D Model Ultra Librarian CTX33-2P-R CAD Model

Description

The Econo-Pac™ series inductors are a great choice for signal transformers and arrays.

  • Series: Econo-Pac™
  • Application: Signal Transformers and Arrays
  • Shielding: Unshielded
  • Standard Package: 800
  • Height: 0.235" (5.97mm)
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • Number of Coils: 2
  • Inductance (Series): 130.7 µH
  • Inductance (Parallel): 32.67 µH
  • Current Rating (Parallel): 1.3 A
  • Current Rating (Series): 650 mA
  • DC Resistance (DCR) (Parallel): 126mOhm Max
  • DC Resistance (DCR) (Series): 503mOhm Max
  • Operating Temperature Range: -40°C ~ 85°C
  • Dimension: 0.450" L x 0.450" W (11.43mm x 11.43mm)
  • Manufacturer: Eaton - Electronics Division
