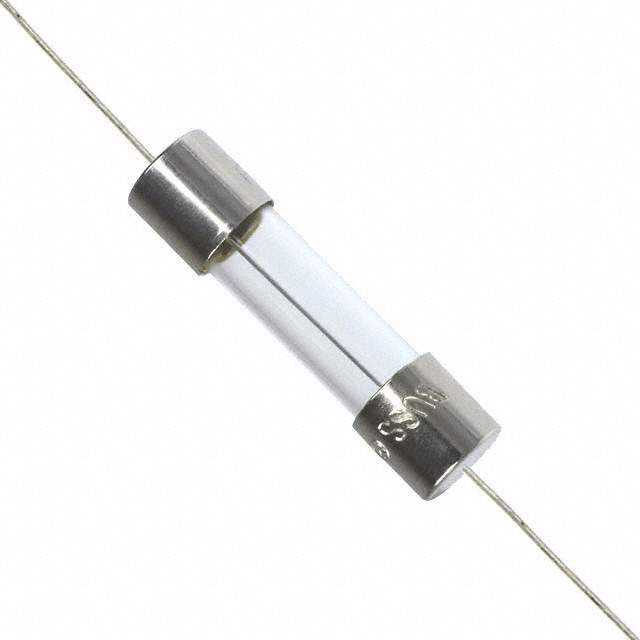

BK/S500-V-5-RS Real Image
Same model may have multiple batches, images only for reference.

BK/S500-V-5-RS

Part No BK/S500-V-5-RS
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE GLASS 5A 250VAC 5X20MM / 5 A 250 V AC DC Fuse Cartridge, Glass Through Hole 5mm x 20mm (Axial)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Eaton - Electronics Division
Series S500
Package Bulk
Mounting Type Through Hole
Fuse Type Cartridge, Glass
Current Rating (Amps) 5 A
Voltage Rating - AC 250 V
Response Time Fast Blow
Package / Case 5mm x 20mm (Axial)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 42
Approval Agency BSI, CCC, cURus, IMQ, PSE, SEMKO, VDE
Dimension 0.218" Dia x 0.831" L (5.54mm x 21.10mm)
DC Cold Resistance 0.014 Ohms
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Names BK-S500-V-5-RS
Standard Package 2,000
Win Source Part Number 1205575-BK/S500-V-5-RS
Ultra Librarian 3D Model Ultra Librarian BK/S500-V-5-RS CAD Model

Description

The S500 series cartridge glass fuse is a through-hole mounting component from Eaton.

  • Voltage Rating: 250V AC
  • Current Rating: 5A
  • Speed: Fast-Blow
  • Breaking Capacity: 50A
  • Melting I2t: 42
  • DC Cold Resistance: 0.014 Ohms
  • Dimension: 0.218" Dia x 0.831" L (5.54mm x 21.10mm)
  • Alternative Parts: BK-S500-V-5-RS, BK/S500V5RS, BKS500-V-5-RS, BKS500V5RS
