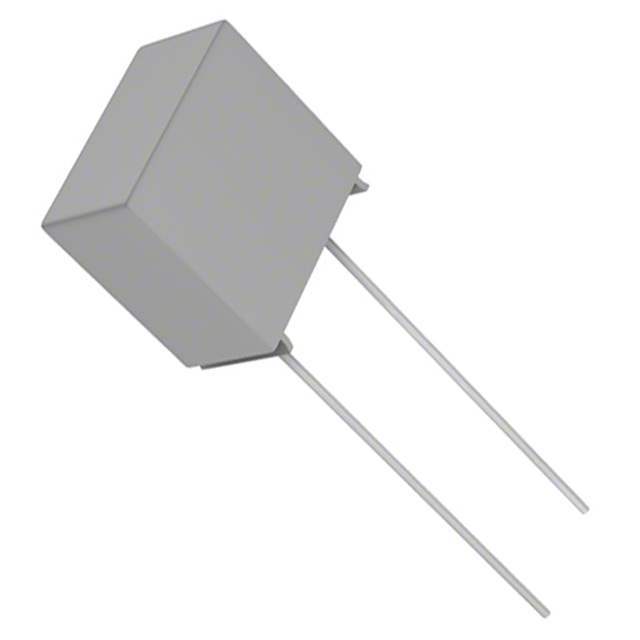

BK/PCD-5-R Eaton - Electronics Division
Same model may have multiple batches, images only for reference.

BK/PCD-5-R

Part No BK/PCD-5-R
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE BRD MT 5A 125VAC 400VDC RAD
Datasheet
BK/PCD-5-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection >Fuses
Mfr Eaton - Electronics Division
Packaging  Bulk
Part Status Active
Mounting Type Through Hole
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 5 A
Voltage Rating - AC 125 V
Voltage Rating - DC 400 V
Response Time Fast Blow
Ultra Librarian 3D Model Ultra Librarian BK/PCD-5-R CAD Model

Description

The PC-Tron subminiature fuse is UL Recognized for DC supplementary overcurrent protection to provide individual protection for components or internal circuits in equipment. Suitability for a specific application is dependent on time constants and capacitance values. It is the responsibility of the customer to evaluate the information provided for applicability to their particular application.
