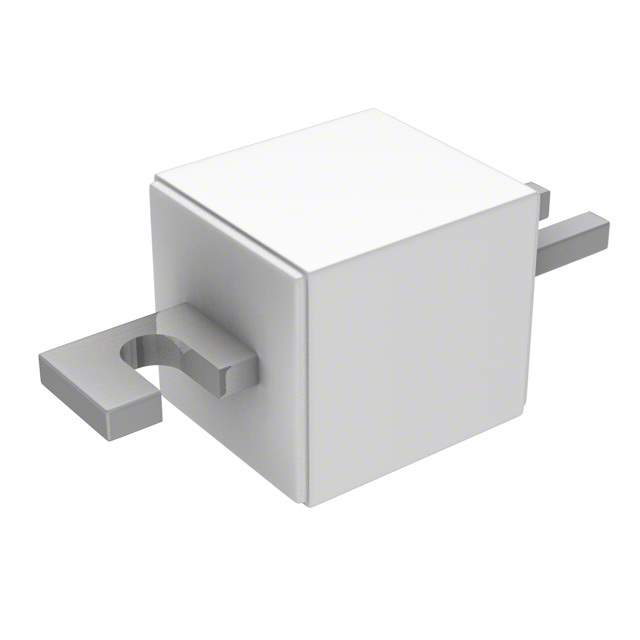

170M6116 Real Image
Same model may have multiple batches, images only for reference.

170M6116

Part No 170M6116
Manufacturer Eaton Bussmann
Catalog Electrical, Specialty Fuses
Description Fuse Square Body 1250A 700V Stud Mount Lug 51 X 92 X 76mm Carton CSA/UL / FUSE SQ 1.25KA 700VAC RECTANGLR
Datasheet
170M6116 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton
Packaging Bulk
Fuse Type Square
Current Rating 1.25kA
Voltage Rating - AC 700V
Applications Electrical, Industrial
Features Indicating
Approvals CE, CSA, UR
Breaking Capacity @ Rated Voltage 200kA
Mounting Bolt Mount
Package Rectangular, Blade
Dimension 2.008" L x 2.992" W x 3.543" H (51.00mm x 76.00mm x 90.00mm)
Melting I2t 290000
Win Source Part Number 785097-170M6116
Popularity Medium
Supply and Demand Status Limited
Family Name 170M
Introduction Date August 07, 2001
ECCN EAR99
Country of Origin Hungary
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian 170M6116 CAD Model

Description

The Eaton 785097-170M6116 is a rectangular blade fuse from Eaton.

  • Voltage Rating: 700V AC
  • Current Rating: 1.25kA
  • Breaking Capacity @ Rated Voltage: 200kA
  • Approvals: CE, CSA, UR
  • Applications: Electrical, Industrial
  • Indicating Feature: Yes
  • Mounting Type: Bolt Mount
  • Size: 2.008” L x 2.992” W x 3.543” H (51.00mm x 76.00mm x 90.00mm)
  • Packaging: Bulk
  • Temperature Range: Not Specified
  • ECCN: EAR99
  • Popularity: Medium
