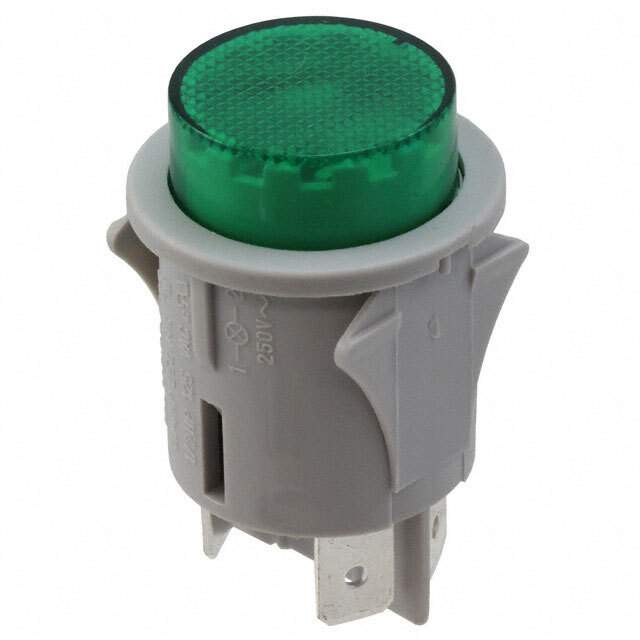

PR142C4000-136 Real Image
Same model may have multiple batches, images only for reference.

PR142C4000-136

Part No PR142C4000-136
Manufacturer E-Switch
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON DPST 16A 125V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer E-Switch
Series PR1, LAMB
Packaging Bulk
Type Standard, Illuminated
Circuit DPST
Switch Function Off-On
Current Rating 16A (AC)
Voltage Rating - AC 125V
Actuator Type Round, Button
Color - Actuator/Cap Green
Illumination Type, Color Neon, Green
Illumination Voltage (Nominal) 125 VAC
Mounting Panel Mount, Snap-In
Termination Style Quick Connect - 0.250" (6.3mm)
Panel Cutout Dimensions Circular - 25.00mm Dia
Operating Temperature Range -20°C ~ 105°C
Electrical Life 10,000 Cycles
Win Source Part Number 770970-PR142C4000-136
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Ultra Librarian 3D Model Ultra Librarian PR142C4000-136 CAD Model

Description

The E-Switch PR142C4000-136 is a standard, illuminated switch that features a DPST circuit and an off-on switch function. It has a round, green button actuator type and a termination style of quick connect - 0.250" (6.3mm).

  • Circuit: DPST
  • Switch Function: Off-On
  • Actuator Type: Round, Green Button
  • Termination Style: Quick Connect - 0.250" (6.3mm)
  • Mounting: Panel Mount, Snap-in
  • Panel Cutout: Circular - 25.00mm dia.
  • Operating Temperature: -20°C to 105°C
  • Voltage Rating: 125V AC
  • Electrical Life: 10,000 cycles
  • Popularity: Medium
  • Supply and Demand Status: Limited
