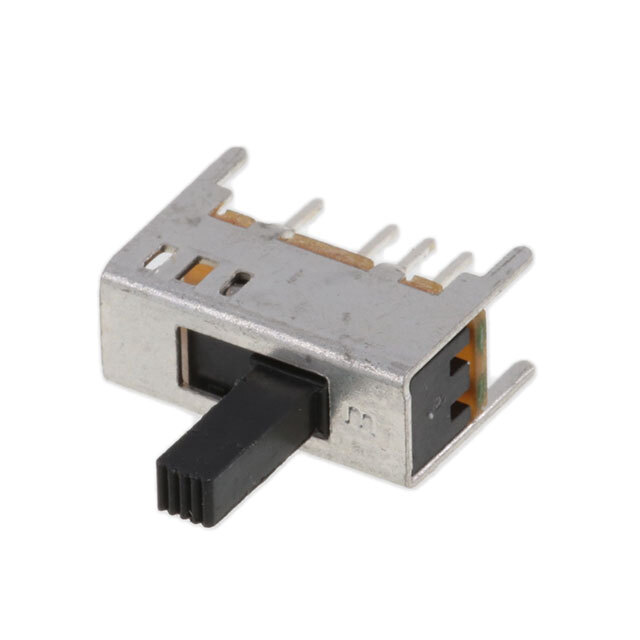

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Circuit SP3T
Contact Timing Not Specified
Switch Function On-On-On
Current Rating (Amps) 200mA (DC)
Voltage Rating - DC 30 V
Actuator Type Standard
Actuator Length 5.00mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Temperature Range - Operating -20°C ~ 70°C
Package Bulk
Supply and Demand Status Normal
Win Source Part Number 1559833-EG1313
Ultra Librarian 3D Model Ultra Librarian EG1313 CAD Model
