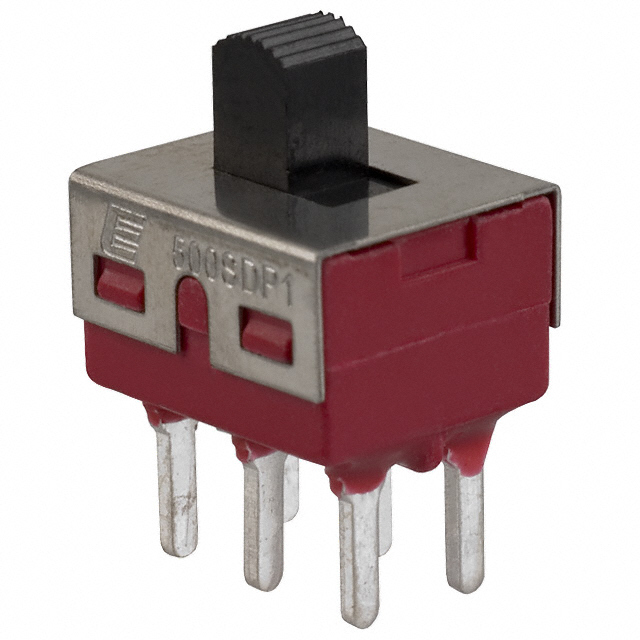

500SDP1S1M2QEA E-Switch – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

500SDP1S1M2QEA

Part No 500SDP1S1M2QEA
Manufacturer E-SWITCH
Catalog Slide Switches
Description SWITCH SLIDE DPDT 5A 120V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category SwitchesSlide Switches
Manufacturer E-Switch
Series 500
Packaging Bulk
Part Status Active
Circuit DPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 5A (AC/DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 28 V
Actuator Type Standard
Actuator Length 5.08mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Features Epoxy Sealed Terminals
Operating Temperature -30°C ~ 85°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 2.16mm
Mechanical Life 30,000 Cycles
Electrical Life 30,000 Cycles
Base Product Number 500SDP1
Ultra Librarian 3D Model Ultra Librarian 500SDP1S1M2QEA CAD Model
