Same model may have multiple batches, images only for reference.

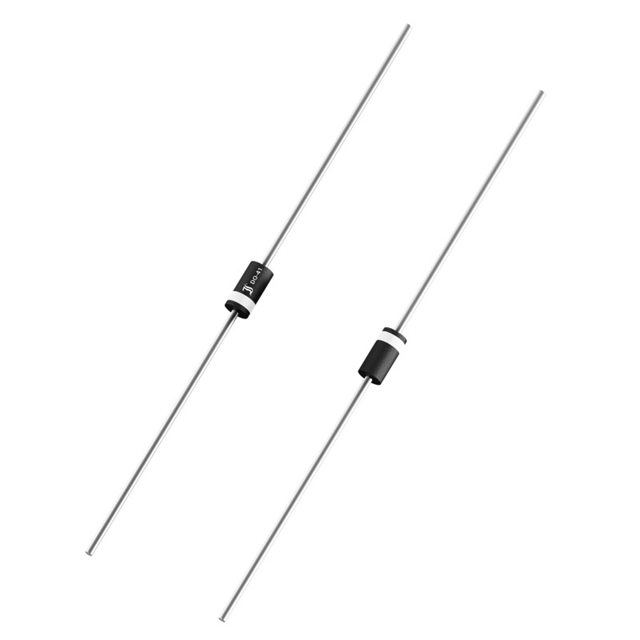

ZY18 Real Image
Same model may have multiple batches, images only for reference.

ZY18

Part No ZY18
Manufacturer DIOTEC Electronics Corporation
Catalog Diodes - Zener - Single
Description ZENERDIODE,DO-41,18V,2W,5% / Zener Diode 18 V 2 W ±5% Through Hole DO-41/DO-204AC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Zener - Single
Mfr Diotec Semiconductor
Package Strip
Voltage - Zener (Nom) (Vz) 18 V
Tolerance ±5%
Power - Max 2 W
Impedance (Max) (Zzt) 6 Ohms
Current - Reverse Leakage @ Vr 1 µA @ 10 V
Temperature Range - Operating -50°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case DO-204AC, DO-41, Axial
Supplier Device Package DO-41/DO-204AC
Other Names 2721-ZY18
Standard Package 30
Win Source Part Number 1117934-ZY18
Ultra Librarian 3D Model Ultra Librarian ZY18 CAD Model

Description

The ZY18 is a diode zener single electronic component. It is manufactured by an unspecified entity.

  • Power Rating: 2W
  • Voltage Rating: 18V
  • Tolerance: ±5%
  • Maximum Impedance: 6 Ohms
  • Operating Temperature Range: -50°C to 150°C
  • Package: DO-204AC, DO-41, Axial
  • Mounting: Through-Hole
