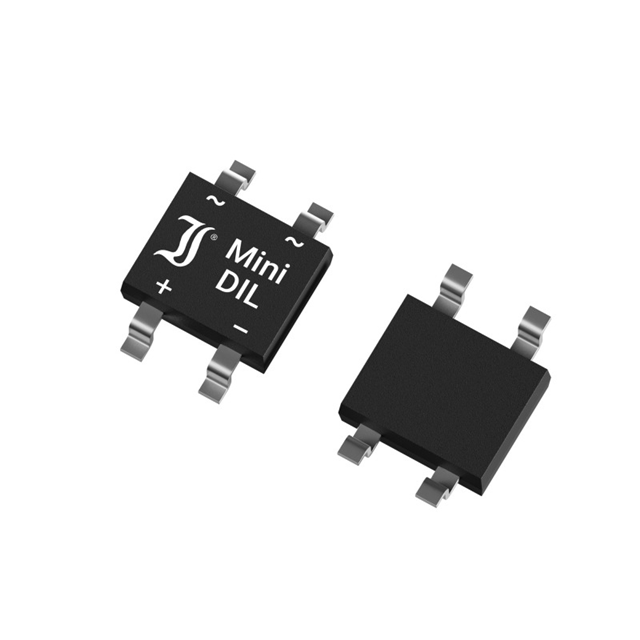

S40 Real Image
Same model may have multiple batches, images only for reference.

S40

Part No S40
Manufacturer DIOTEC Electronics Corporation
Catalog Bridge Rectifiers
Description BRIDGE RECTIFIER, SINGLE PHASE, / Bridge Rectifier Single Phase Standard 80 V Surface Mount TO-269AA MINIDIL SLIM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Manufacturer Diotec Semiconductor
Packaging Strip
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 80 V
Current - Average Rectified (Io) 800 mA
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 800 mA
Current - Reverse Leakage @ Vr 5 µA @ 80 V
Temperature Range - Operating -50°C ~ 150°C (TJ)
Mounting Surface Mount
Case / Package TO-269AA, 4-BESOP
Supplier Device Package TO-269AA MINIDIL SLIM
RoHS Status ROHS3 Compliant
Other Part Number 2721-S40
Standard Package 15
Win Source Part Number 1324253-S40
Ultra Librarian 3D Model Ultra Librarian S40 CAD Model

Description

The Diotec Semiconductor 1324253-S40 is a single-phase diode bridge rectifier with a maximum peak reverse voltage of 80 V.

  • Current Rating: 800 mA
  • Forward Voltage: 1.1 V @ 800 mA
  • Package: TO-269AA MINIDIL SLIM
  • Standard Package: 15
  • ROHS3 Compliant: true
