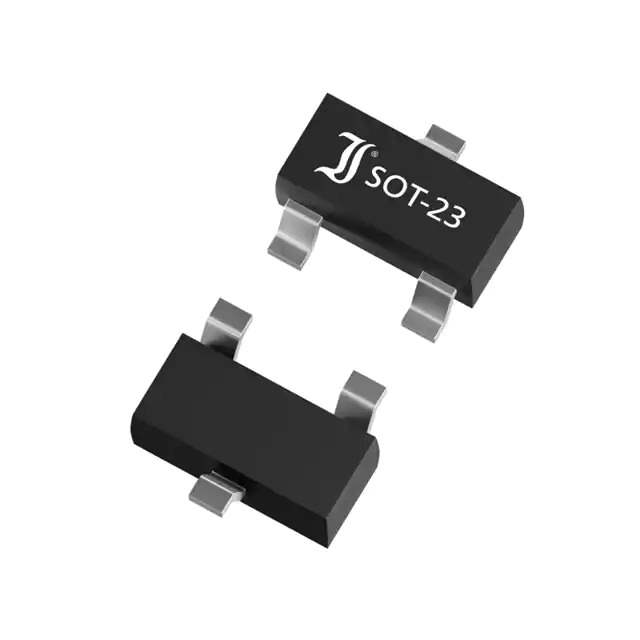

PSOT03C Real Image
Same model may have multiple batches, images only for reference.

PSOT03C

Part No PSOT03C
Manufacturer DIOTEC Electronics Corporation
Catalog TVS - Diodes
Description TVS DIODE 3.3VWM 10.9VC SOT23-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr DIOTEC Electronics Corporation
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 3.3V
Voltage - Breakdown (Min) 4V
Voltage - Clamping (Max) @ Ipp 10.9V
Current - Peak Pulse (10/1000µs) 43A (8/20µs)
Power - Peak Pulse 500W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 300pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23-3 (TO-236)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
HTSUS 8541.10.0000
Win Source Part Number 657505-PSOT03C
Ultra Librarian 3D Model Ultra Librarian PSOT03C CAD Model

Description

The 657505-PSOT03C is a Zener type transient voltage suppressor (TVS) diode designed for general-purpose circuit protection.

  • Diode Type: transient voltage suppressor (TVS)
  • Application: general-purpose circuit protection
  • Packaging: tape and reel
  • Channel: bidirectional
  • Reverse Standoff Voltage: 3.3V
  • Breakdown Voltage: 4V
  • Clamping Voltage: 10.9V @ peak pulse current
  • Peak Pulse Power: 500W
  • Capacitance: 300pF @ a frequency of 1MHz
  • Peak Pulse Current: 43A
  • Mounting: surface mountable
  • Package: TO-236-3, SC-59, SOT-23-3
  • Operating Temperature Range: -55°C to 150°C
  • Status: active
  • Manufacturer: DIOTEC Electronics Corporation
