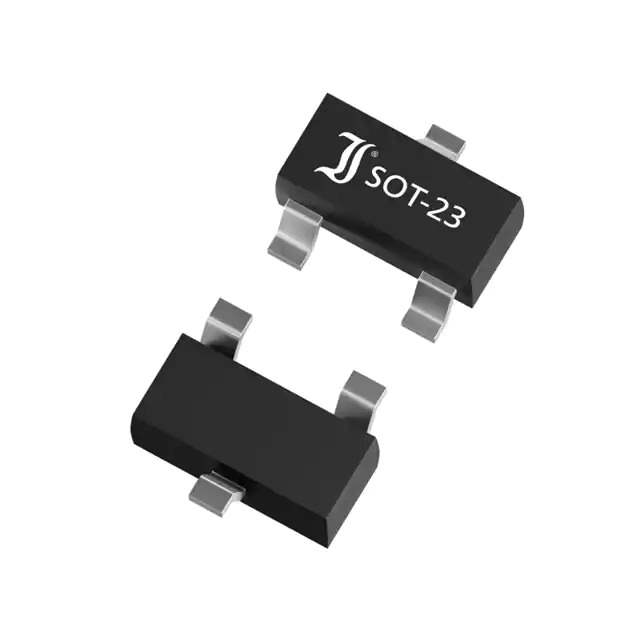

NUP2105L Real Image NUP2105L Real Image
Same model may have multiple batches, images only for reference.
NUP2105L Real Image NUP2105L Real Image
NUP2105L Real Image NUP2105L Real Image
Same model may have multiple batches, images only for reference.

NUP2105L

Part No NUP2105L
Manufacturer DIOTEC Electronics Corporation
Catalog TVS - Diodes
Description TVS DIODE 24VWM 44VC SOT23-3 / 44V Clamp 8A (8/20μs) Ipp Tvs Diode Surface Mount SOT-23-3 (TO-236)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr DIOTEC Electronics Corporation
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 2
Voltage - Reverse Standoff (Typ) 24V
Voltage - Breakdown (Min) 26.2V
Voltage - Clamping (Max) @ Ipp 44V
Current - Peak Pulse (10/1000µs) 8A (8/20µs)
Power - Peak Pulse 350W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 30pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23-3 (TO-236)
Base Product Number NUP2105
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
HTSUS 8541.10.0000
Win Source Part Number 887852-NUP2105L
Ultra Librarian 3D Model Ultra Librarian NUP2105L CAD Model

Description

The NUP2105L is a bidirectional Zener diode designed for general-purpose circuit protection against electrostatic discharge (ESD) and other transient voltage events.

  • Voltage Reverse Standoff: 24V
  • Voltage Breakdown: 26.2V
  • Clamping Voltage: 44V @ peak pulse current (Ipp) of 8A
  • Peak Pulse Power: 350W
  • Package: surface mount, SOT-23-3 (TO-236)
  • Operating Temperature Range: -55°C to 150°C
  • Manufacturer: DIOTEC Electronics Corporation
  • Product Status: active
  • Category: Circuit Protection - Transient Voltage Suppressors (TVS)
