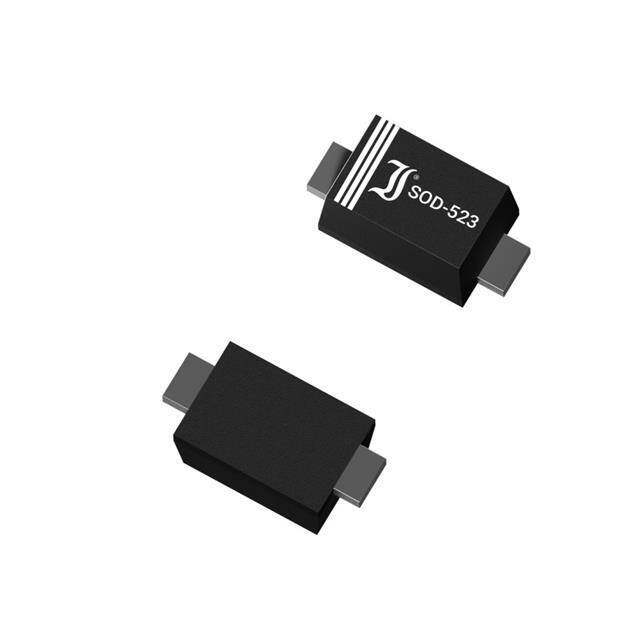

ESDB5V0 Real Image
Same model may have multiple batches, images only for reference.

ESDB5V0

Part No ESDB5V0
Manufacturer DIOTEC Electronics Corporation
Catalog TVS - Diodes
Description ESD DIODE, SOD-523, 5V, 20W, U
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr DIOTEC Electronics Corporation
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V
Voltage - Breakdown (Min) 5.5V
Voltage - Clamping (Max) @ Ipp 11.1V
Current - Peak Pulse (10/1000µs) 4A
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 3.5pF @ 1MHz
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case SC-79, SOD-523
Supplier Device Package SOD-523
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
HTSUS 8541.10.0000
Win Source Part Number 1057949-ESDB5V0
Ultra Librarian 3D Model Ultra Librarian ESDB5V0 CAD Model

Description

The 1057949-ESDB5V0 is a Zener type transient voltage suppressor (TVS) diode designed for general-purpose circuit protection.

  • Package: tape & reel format with a standard package of 4,000 pieces
  • Type: bidirectional TVS diode
  • Reverse Standoff Voltage: 5V
  • Breakdown Voltage: 5.5V
  • Clamping Voltage @ Peak Pulse Current: 11.1V
  • Peak Pulse Current: 4A
  • Capacitance @ 1MHz: 3.5pF
  • Mounting: surface mountable
  • Package: SC-79, SOD-523 package
  • Operating Temperature Range: -55°C to 125°C
  • Manufacturer: DIOTEC Electronics Corporation
  • Status: active product
