Product Overview: US1JDF-13 from Diodes Incorporated

The US1JDF-13 is a high-efficiency, surface-mount, fast recovery rectifier designed by Diodes Incorporated, a leading manufacturer and supplier of high-quality semiconductor products. This rectifier is engineered to provide designers with a reliable solution for applications requiring quick switching and low power loss.

Key Features

• Reverse Voltage: The US1JDF-13 is capable of withstanding a maximum repetitive reverse voltage of 600V, making it suitable for high-voltage applications.
• Forward Current: It offers a high average forward rectified current of 1.0A, ensuring adequate current handling capabilities for a variety of circuits.
• Fast Recovery Time: With a fast recovery time, this rectifier minimizes energy loss and improves efficiency, which is crucial for power regulation in high-speed switching applications.
• Low Forward Voltage Drop: The low forward voltage drop feature reduces power dissipation and improves efficiency, which is beneficial in reducing operational costs and heat generation.
• Thermal Characteristics: The US1JDF-13 is designed with excellent thermal characteristics, enabling it to operate at a junction temperature range of -55°C to +150°C.

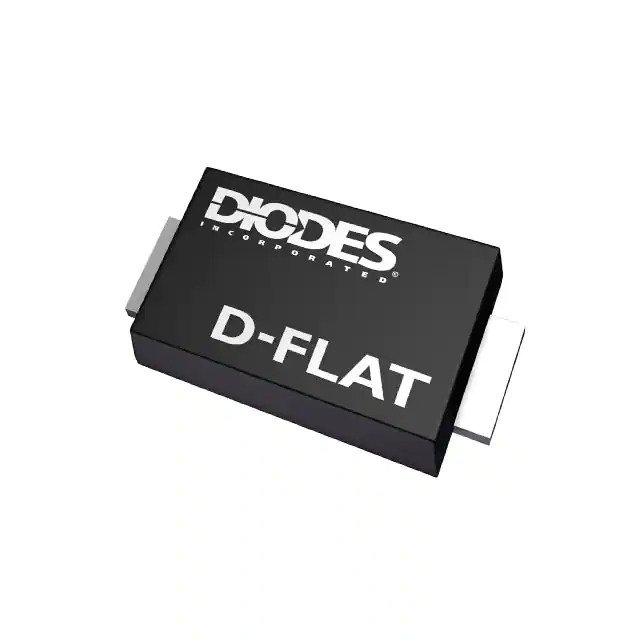

• Package: Available in a compact SOD-123F package, it is ideal for space-constrained applications and allows for easy integration into various circuit designs.

Applications

The versatility of the US1JDF-13 allows it to be used across a wide range of applications, including:

• Power supply management
• DC-DC converters
• Free-wheeling diodes in converters and motor control circuits
• Reverse voltage protection
• Switching power supplies
• Lighting systems

Quality and Reliability

Diodes Incorporated is committed to providing products that meet the highest standards of quality and reliability. The US1JDF-13 is no exception, as it is manufactured with the best materials and subjected to rigorous testing to ensure its performance in demanding environments.

With its combination of efficiency, reliability, and compact form factor, the US1JDF-13 from Diodes Incorporated stands out as a top choice for engineers and designers looking for a fast recovery rectifier that does not compromise on performance.
