Product Overview: SMBJ9.0A-13 9V TVS Diode from Diodes Incorporated

The SMBJ9.0A-13 is a state-of-the-art transient voltage suppressor (TVS) diode designed by Diodes Incorporated to protect sensitive electronic equipment from voltage transients induced by system-level events such as lightning, electrostatic discharge (ESD), and power surges. Rated at 9V, this robust TVS diode is an essential component for ensuring the reliability and longevity of critical systems in a wide range of applications.

Key Features

• Peak Pulse Power: The SMBJ9.0A-13 can handle a peak pulse power of 600W (10/1000μs waveform), providing a strong shield against high-energy transients.
• Breakdown Voltage: With a breakdown voltage range of 10V to 9.9V, this diode ensures precise operation, maintaining system integrity during voltage spikes.
• Low Incremental Surge Resistance: The device exhibits excellent clamping capability, resulting in a low incremental surge resistance when subjected to high transient events.

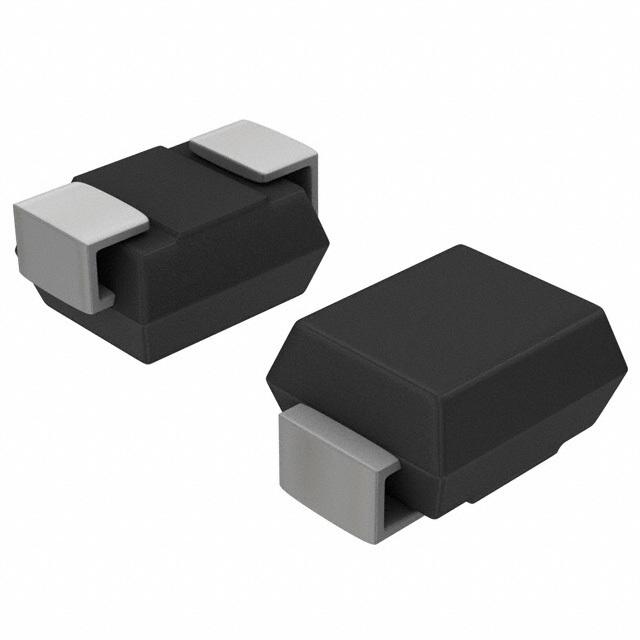

• Surface Mount Package: Encased in a DO-214AA package, the SMBJ9.0A-13 is suitable for automated assembly processes, and its compact size makes it ideal for space-constrained applications.
• Operating Temperature Range: With an operating temperature range of -55°C to +150°C, this TVS diode is well-suited for harsh environmental conditions.
• Compliance: The SMBJ9.0A-13 is compliant with the RoHS and REACH standards, ensuring environmental safety and global acceptance.

Applications

The SMBJ9.0A-13 is versatile and can be used in a variety of electronic devices, such as:

• Portable Devices
• Power Management Systems
• Industrial Control Systems
• Automotive Electronics
• Consumer Electronics
• Telecommunication Systems

Diodes Incorporated's commitment to quality is evident in the SMBJ9.0A-13 TVS diode, which is designed to meet the stringent requirements of the electronics industry. Whether you are designing a new system or upgrading an existing one, this TVS diode is an excellent choice for safeguarding your electronic components against voltage transients.
