The SDT40A120CTE from Diodes Incorporated is a state-of-the-art power semiconductor device that is designed to cater to the demanding requirements of modern electronic circuits. This component is part of Diodes Incorporated's extensive range of diode technologies, offering high efficiency and reliability for a variety of applications.

Key Features

• High Voltage Capability: The SDT40A120CTE is capable of handling high voltages, making it suitable for high voltage applications.
• Low Forward Voltage Drop: This device has a low forward voltage drop, which helps to reduce power loss and improve efficiency in operation.
• Fast Switching Speed: With its fast switching capabilities, the SDT40A120CTE minimizes switching losses and is ideal for high-frequency applications.
• Dual Configuration: The component comes in a dual diode configuration, providing design flexibility and the ability to handle more complex circuit designs.
• Robust Thermal Performance: It is designed to exhibit excellent thermal performance, ensuring reliability even under high temperature operating conditions.

Applications

The SDT40A120CTE is well-suited for a wide range of applications, including:

• Power management systems
• DC-DC converters
• AC-DC power supplies
• Power factor correction circuits
• Motor drives and inverters
• Automotive applications

Technical Specifications

Some of the technical specifications of the SDT40A120CTE include:

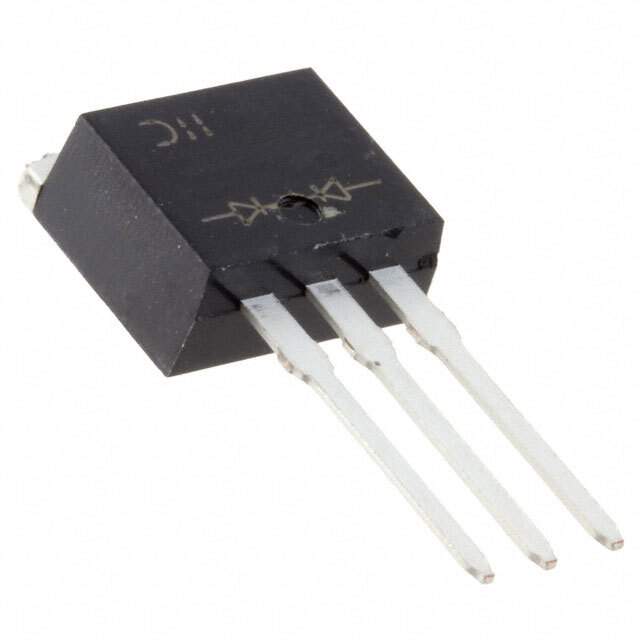

• Package: TO-220AB
• Maximum Repetitive Reverse Voltage (Vrrm): 1200V
• Average Forward Current (IF(AV)): 40A
• Operating Junction Temperature Range: -55°C to +175°C

Quality and Reliability

Diodes Incorporated is known for its commitment to quality, and the SDT40A120CTE is no exception. It is manufactured to meet the highest industry standards for performance and reliability, ensuring that it performs as expected in even the most demanding situations.

Environmental Compliance

The SDT40A120CTE complies with RoHS and Green standards, reflecting Diodes Incorporated's dedication to environmental responsibility and the production of eco-friendly products.
